150mm External Wall Mounted Centrifugal Fan: Vortice CA WE (AC Motor)

Fresh Ventilation do not recommend, sell or install any other type of wall mounted fan.

Vortice CA 150 WE D E: Centrifugal Duct Fan for External Wall

The Vortice CA 150 is an externally wall-mounted centrifugal duct fan. Unlike internally mounted fans which are severely limited by mounting space and noise requirements, the Vortice CA 150 actually works!

Included Items

• 1 x 150mm Vortice CA 150 WE D E centrifugal fan manufactured in Italy.

Recommended Items (Optional)

• 1 x White plastic Louvre grille (click here).
• 1 x 6m V-Flex duct manufactured in Australia (click here).
• 1 x 30m duct tape (click here).
• 1 x IS-SS IntelliSwitch automatic run-on timer (click here).

Additional quantities of individual items can be purchased in our store.

Specifications

• R2E220 motor manufactured by ebm-papst in Germany.

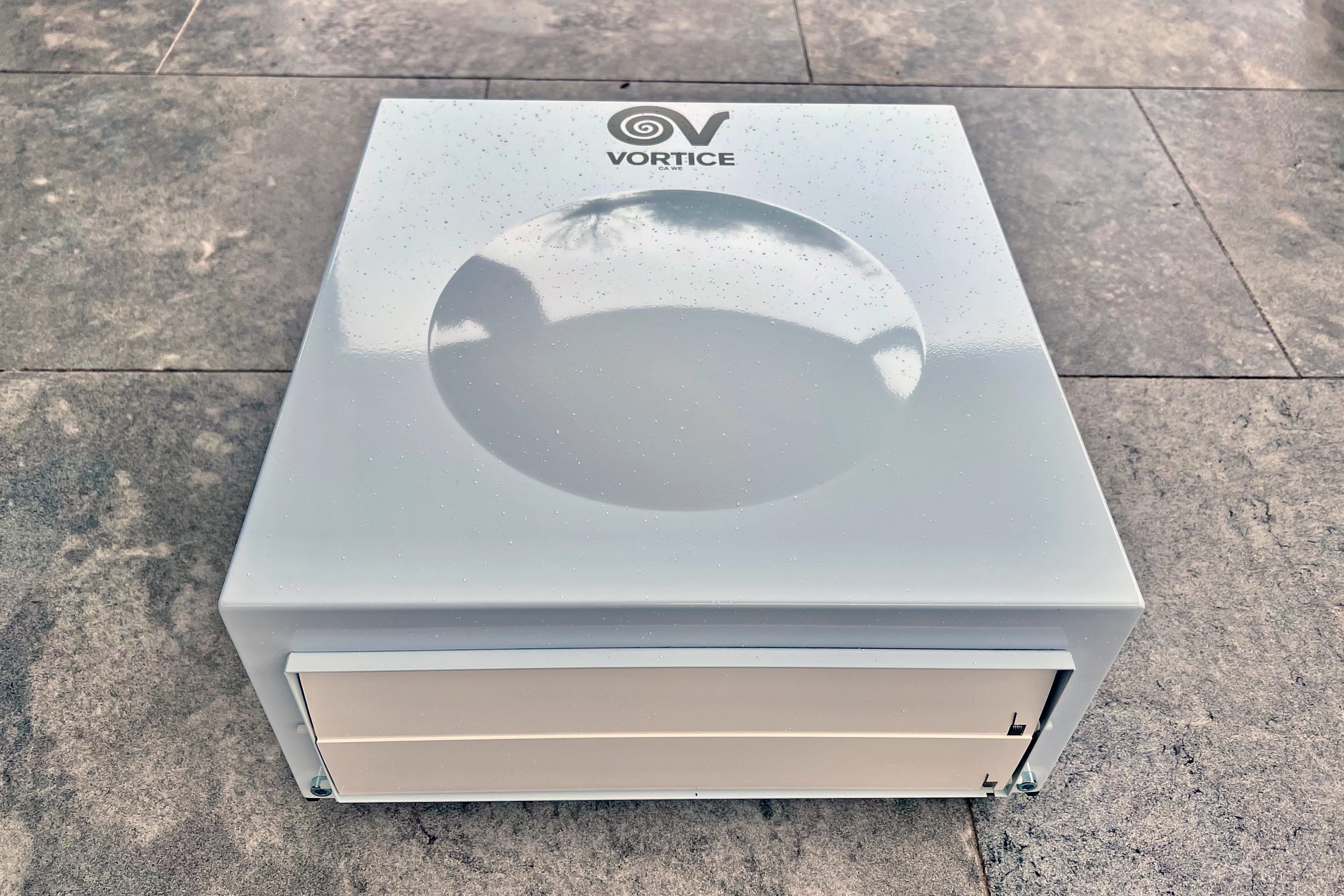

• P04 pressed steel outer enclosure with a polyester paint finish (resistant to atmospheric agents) manufactured by Vortice in Italy.
• Designed and assembled in Italy.
• AC motor with a thermal overload cutout.

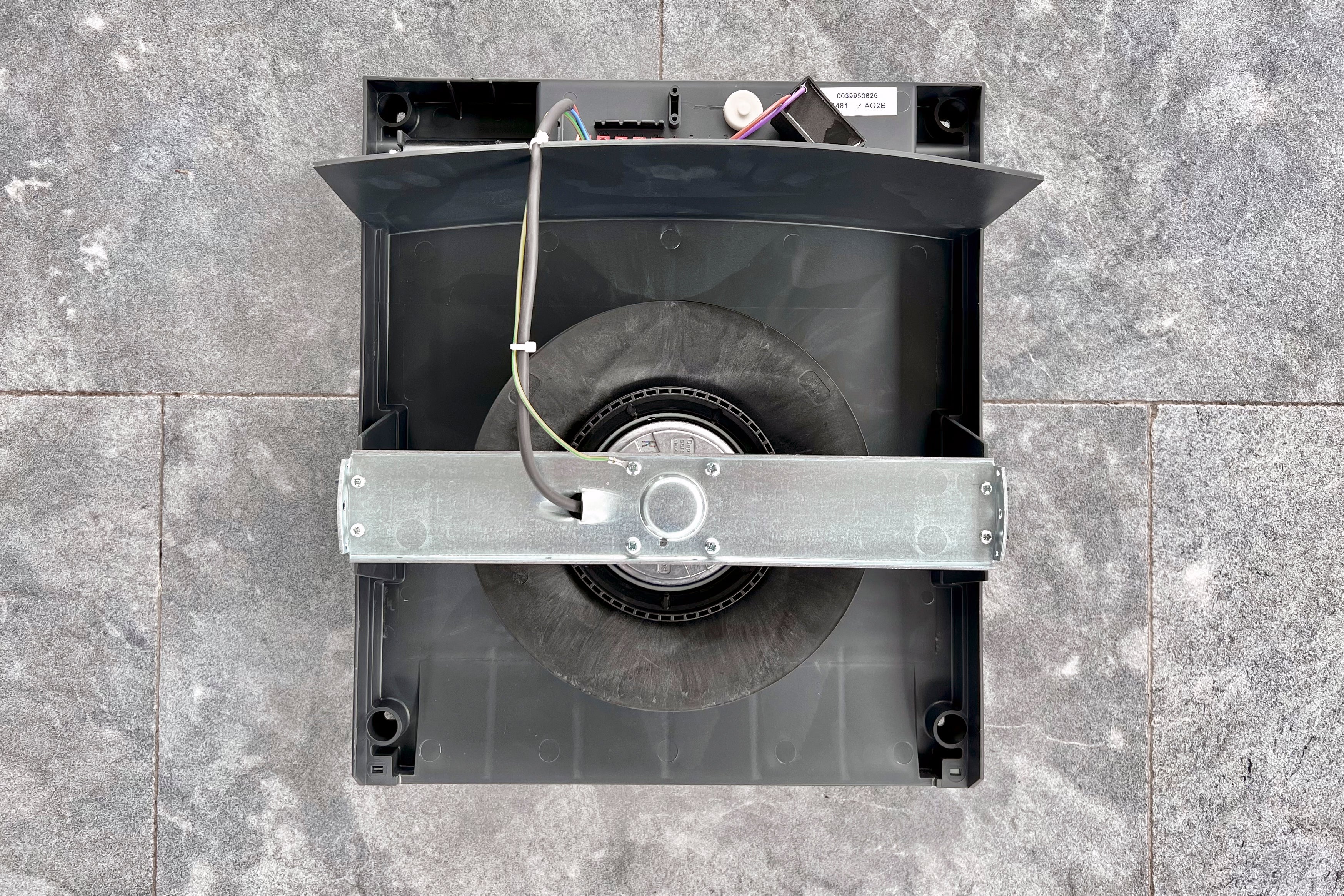

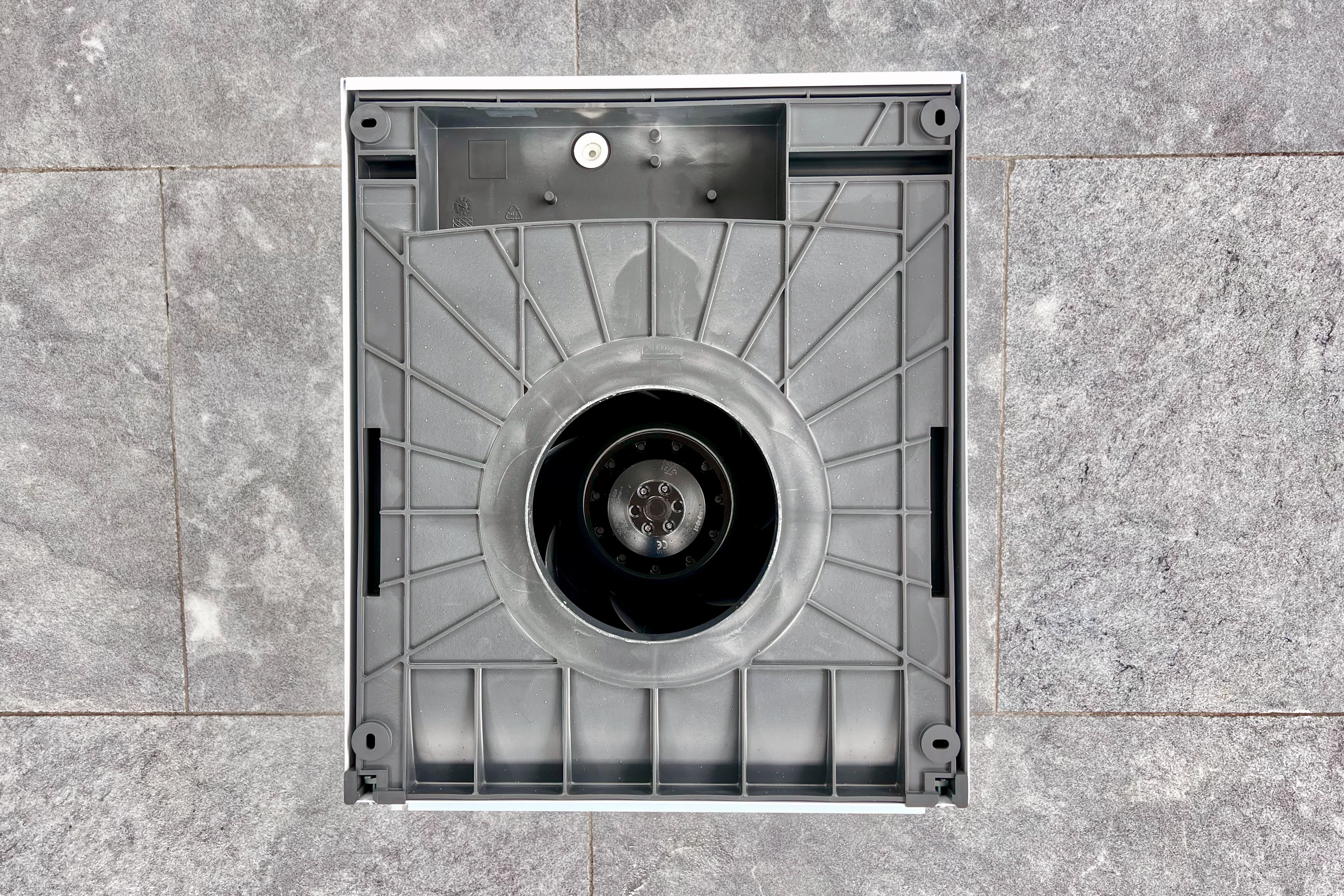

• Backward curved centrifugal impeller.
• 3 speed fan (dependant on installation wiring and switching).
• Controllable by optional remote sensors (temperature, relative humidity, smoke and presence).

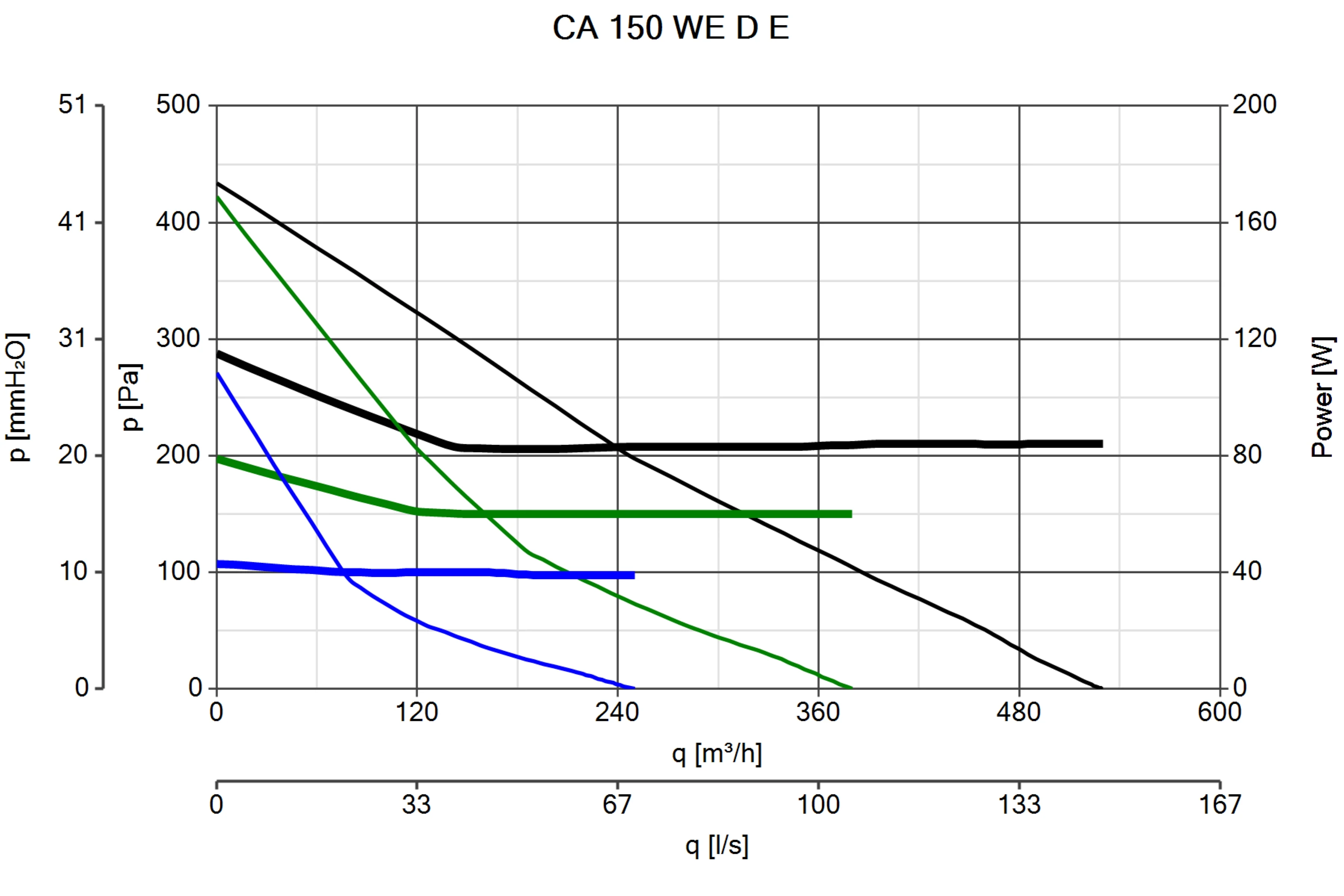

• Approximately 250 m³/h air flow and 39 W power usage (low speed).
• 36.2 dB(A) sound pressure level at 3m (low speed).
• Approximately 530 m³/h air flow and 87 W power usage (max speed).
• 53.0 dB(A) sound pressure level at 3m (max speed).

Dimensions

• 360mm width (A).
• 430mm height (B).
• 173mm depth (C).
• 155mm Louvre opening depth (D).
• 147mm duct attachment flange diameter (E).
• 20mm duct attachment flange depth (F).
