150mm Prestige Round Frameless Ceiling Grille

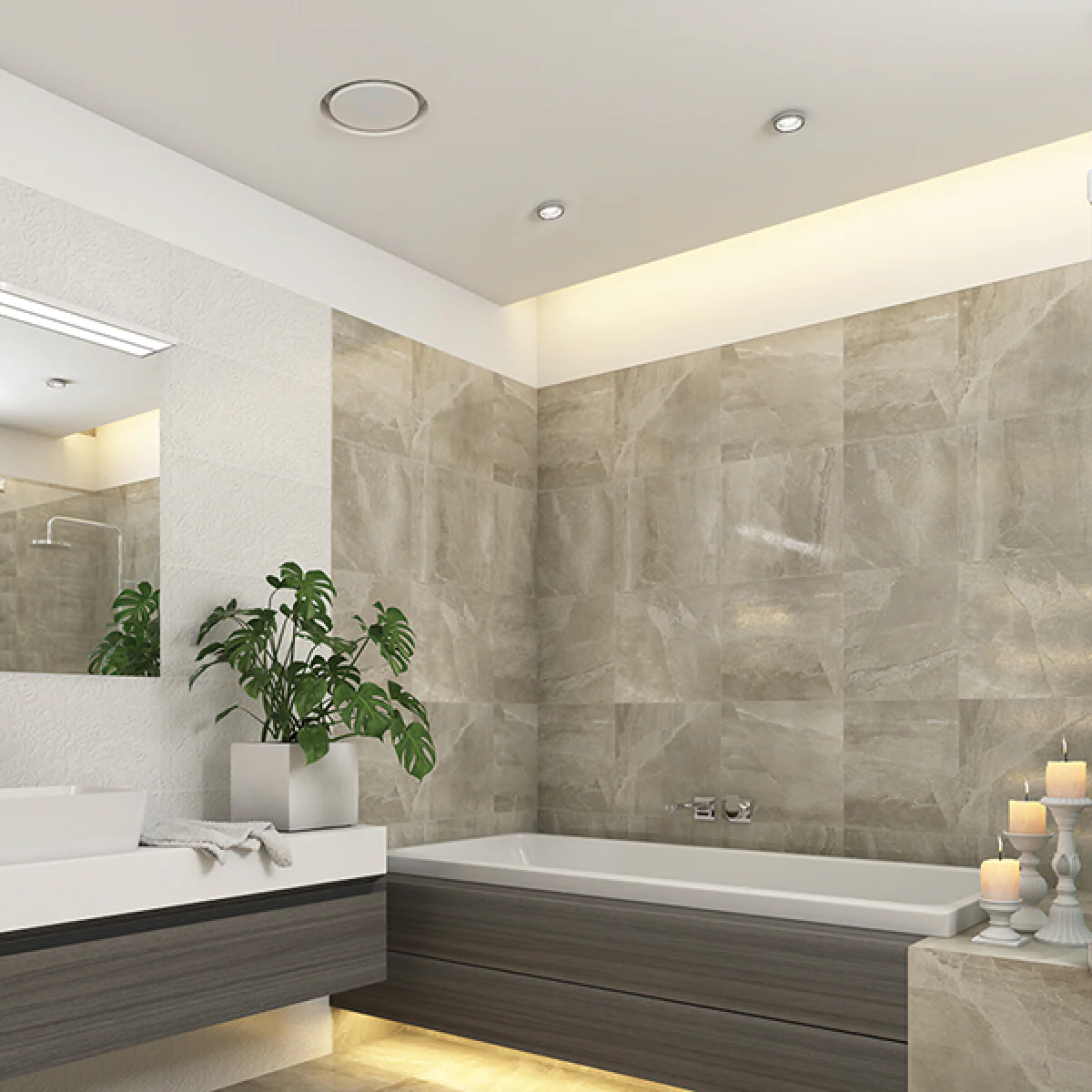

The Prestige Frameless Round Ceiling Grille (270mm) is set flush in the gyprock, creating a minimalistic look for your bathroom, laundry or anywhere that stylish venting is wanted.

A minimalist grille showing only a circular negative detail ideal for a robust, elegant solution to fan covers in wet areas. The framework is square stopped into the ceiling/wall and central plaque fixings are not seen.

Once the unit is plastered in place the flexible duct is pulled down through the hidden frame and attached to the spigot at the back of the central plaque.

The white powder coated surface of the plaque (220mm) is level with the ceiling and can be lightly sanded and repainted to match the ceiling colour if required.

• Powder coated steel body and plaque
• Body colour: satin black powder coat
• Plaque colour: appliance white powder coat

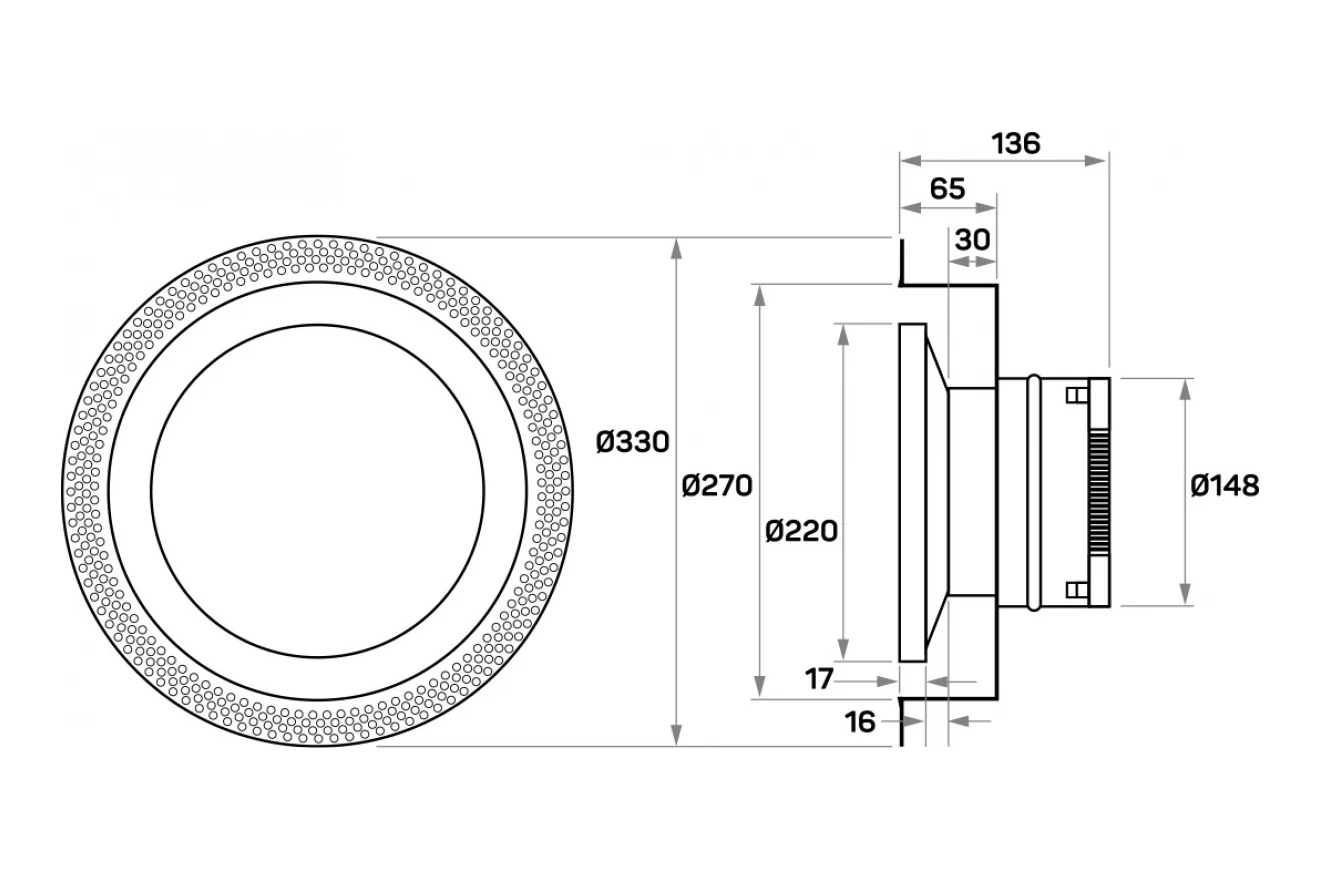

Specifications and Dimensions

• Cutout: 270mm Round
• Diameter (Before Setting): 330mm
• Diameter (After Setting): 270mm
• Diameter (Inner Plaque): 220mm
• Depth: 136mm
• Duct Spigot: 148mm
