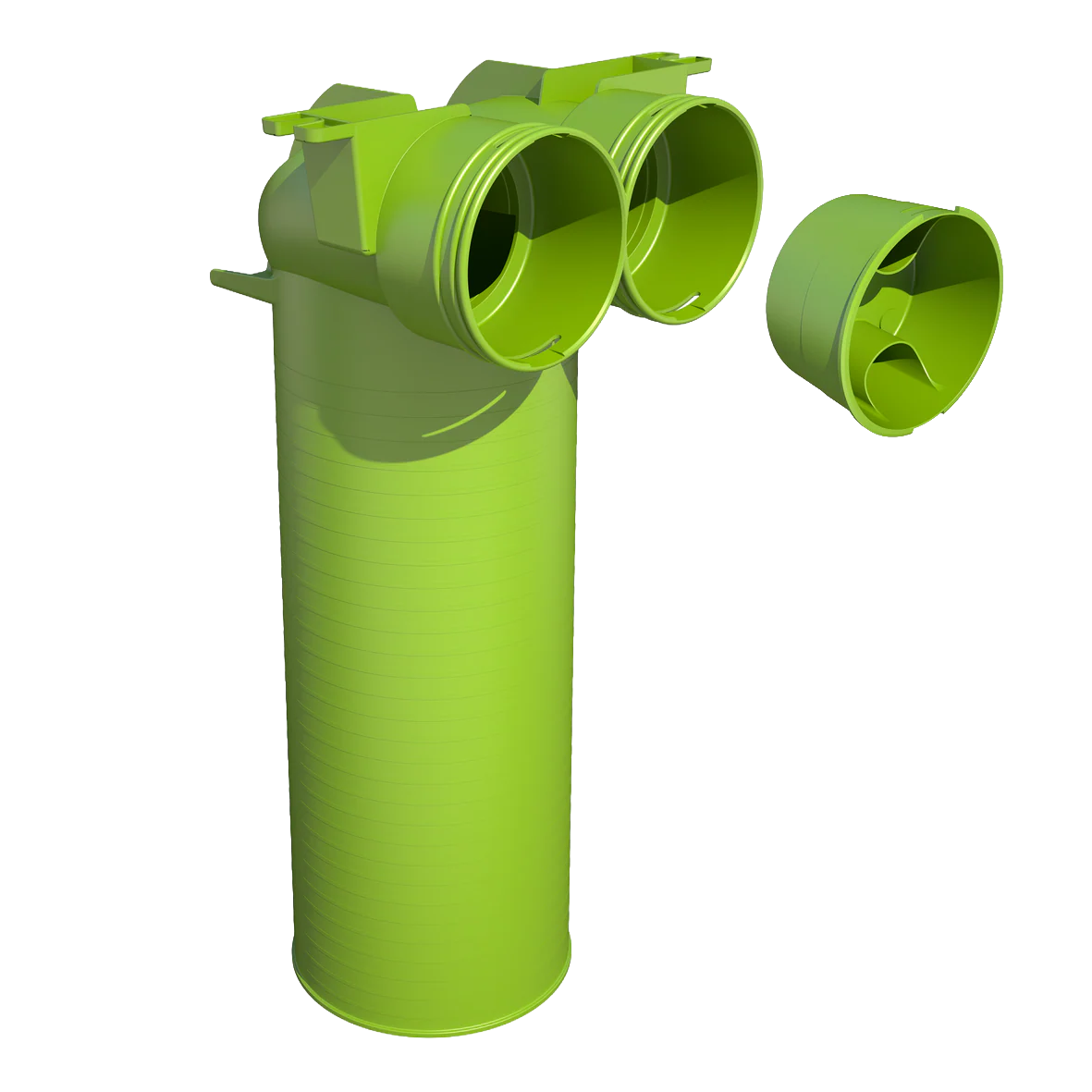

Air Excellent 2 x AE48C Valve Adaptor 125mm 90°

An AE48C duct accessory. Use an AE48C seal ring and an AE48C click ring to connect the AE48C duct to it.

• Modular manifolds, which can be used with all 6 duct types
• Semi-rigid plastic ducts on a roll and airtight mechanical connections, which are extremely easy to install
• Low system pressure loss due to radial design
• Airtight (class ATC1 up to +/- 1000 Pa) thanks to mechanical connections, which minimises fan energy use and sound production
• TÜV SÜD and ISEGA tested and certified, REACH compliant

Detailed information

This item can be used to terminate a duct run inside a habitable or wet room. A valve must be inserted into it.

Specifications

General

Product Name	Air Excellent 2 x AE48C Valve Adaptor 125mm 90°
Type	Adaptors
GTIN	8713645204550
Accessories in Package	Cover Cap and 1 AE48C Accessory Cap
Trade Name	Air Excellent

Technical

Colour	Green
Material	PP
Anti Static	✅
Antimicrobial	✅
Airflow Direction	Supply / Extract
Shape	Circular
Dimension	90 mm

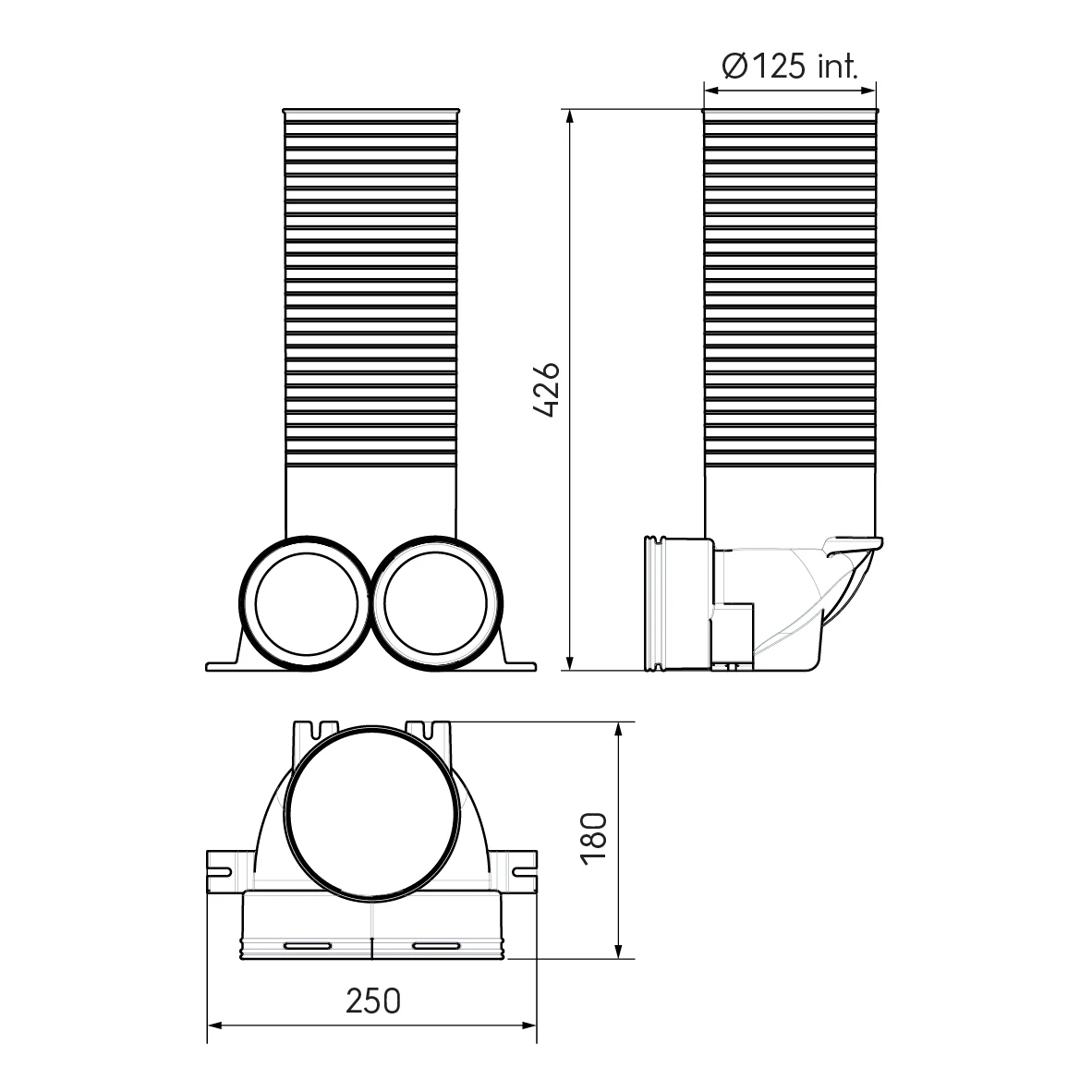

Dimensions

Length Gross	426 mm
Width	250 mm
Height	180 mm
Net Weight	0.44 kg

Logistical

Intrastat	39259080
Base Unit Packaging	Unpacked
Gross Weight	0.44 kg
Packaging / Trade Length	426 mm
Packaging / Trade Width	250 mm
Packaging / Trade Height	180 mm

Performance

CE String	-
Temperature Resistance (min.)	-20 °C
Temperature Resistance (max.)	60 °C

Downloads

• Technical data sheet - Air Excellent 2 x AE48C Valve Adaptor 125mm 90°
• Declaration of Performance - TÜV SÜD Air Excellent
• Certificate - TÜV SÜD Air Excellent
• Brochure - Air Excellent
• Installation manual - Air Excellent ductwork
