Air Excellent AE23C Semi-Rigid Duct 50m

An Air Excellent semi-rigid plastic duct DN63/50mm without any additives.

• Modular manifolds, which can be used with all 6 duct types
• Semi-rigid plastic ducts on a roll and airtight mechanical connections, which are extremely easy to install
• Low system pressure loss due to radial design
• Airtight (class D/ATC 1 up +/- 1000 Pa) thanks to mechanical connections, which minimises fan energy use and sound production

Detailed information

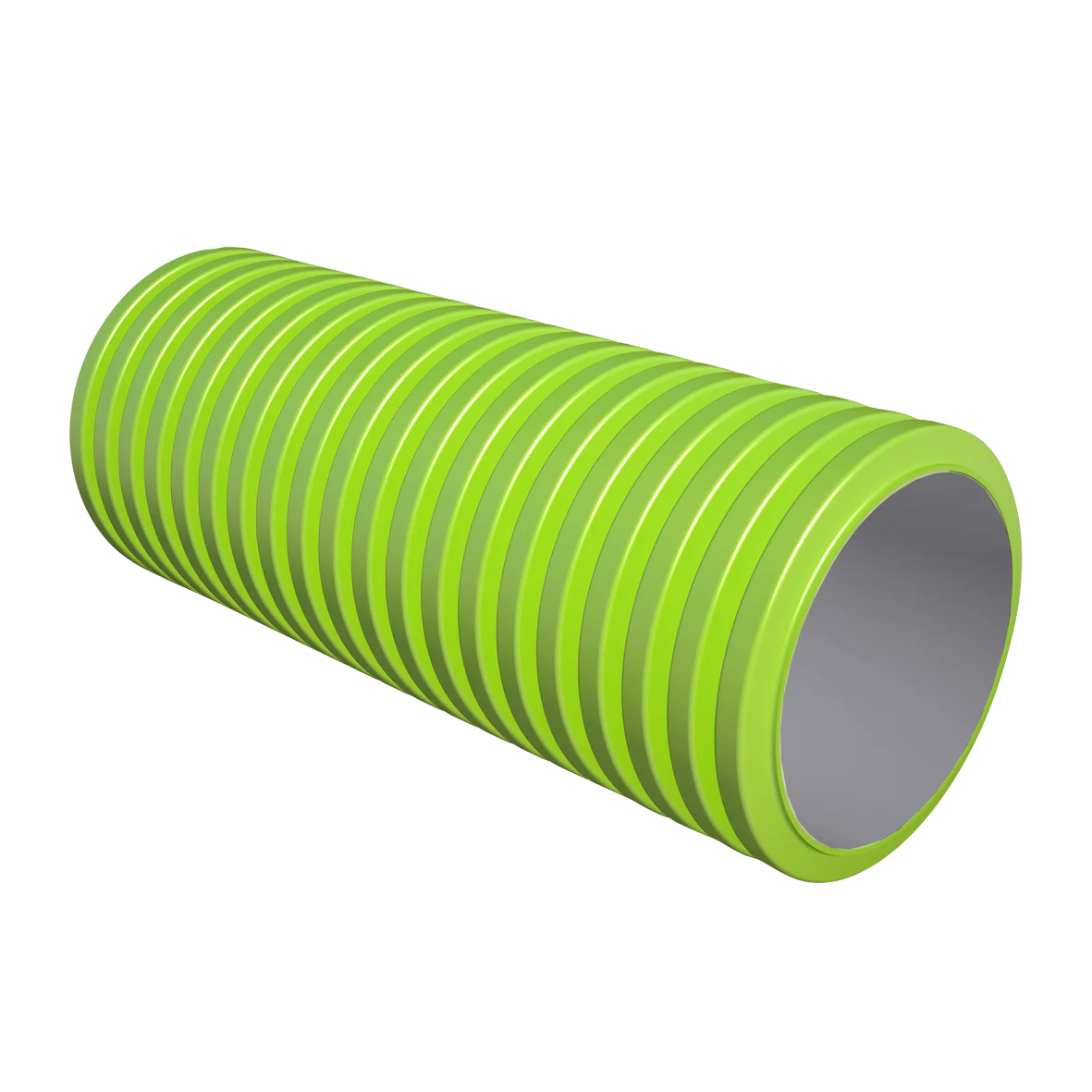

This semi-rigid/bendable plastic duct is made of virgin PE to ensure its quality and durability and has a high-density outer layer with a ring stiffness of 10.83 kN/m2 in accordance with ISO 9969 and a smooth inner surface. It is easy to cut with a knife.

Specifications

General

Product Name	Air Excellent AE23C Semi-Rigid Duct 50m
Type	Ductwork
GTIN	4049193055691
Trade Name	Air Excellent

Technical

Comm. Dimension	63 mm
Colour	Green
Material	PE
Shape	Circular
Anti Static	❎
Antimicrobial	❎
Airflow Direction	Supply / Extract

Dimensions

Length Gross	50 m / 50000 mm
Width	64 mm
Height	64 mm

Logistical

Intrastat	39173200
Number per Packaging	1
Base Unit Packaging	Unpacked
Gross Weight	12.35 kg

Performance

Temperature Resistance (min.)	-20 °C
Temperature Resistance (max.)	60 °C
Installation Temperature (min.)	0 °C
Installation Temperature (max.)	50 °C

Downloads

• Technical data sheet - Air Excellent AE23C Semi-Rigid Duct 50m
• Installation manual - Air Excellent ductwork
• Brochure - Air Excellent
