Air Excellent AE34C Bend 90° Kit

An AE34C duct accessory. Includes 2 AE34C seal rings and 2 AE34C click rings to connect the ducts to it.

• Modular manifolds, which can be used with all 6 duct types
• Semi-rigid plastic ducts on a roll and airtight mechanical connections, which are extremely easy to install
• Low system pressure loss due to radial design
• Airtight (class ATC1 up to +/- 1000 Pa) thanks to mechanical connections, which minimises fan energy use and sound production
• TÜV SÜD and ISEGA tested and certified, REACH compliant

Detailed information

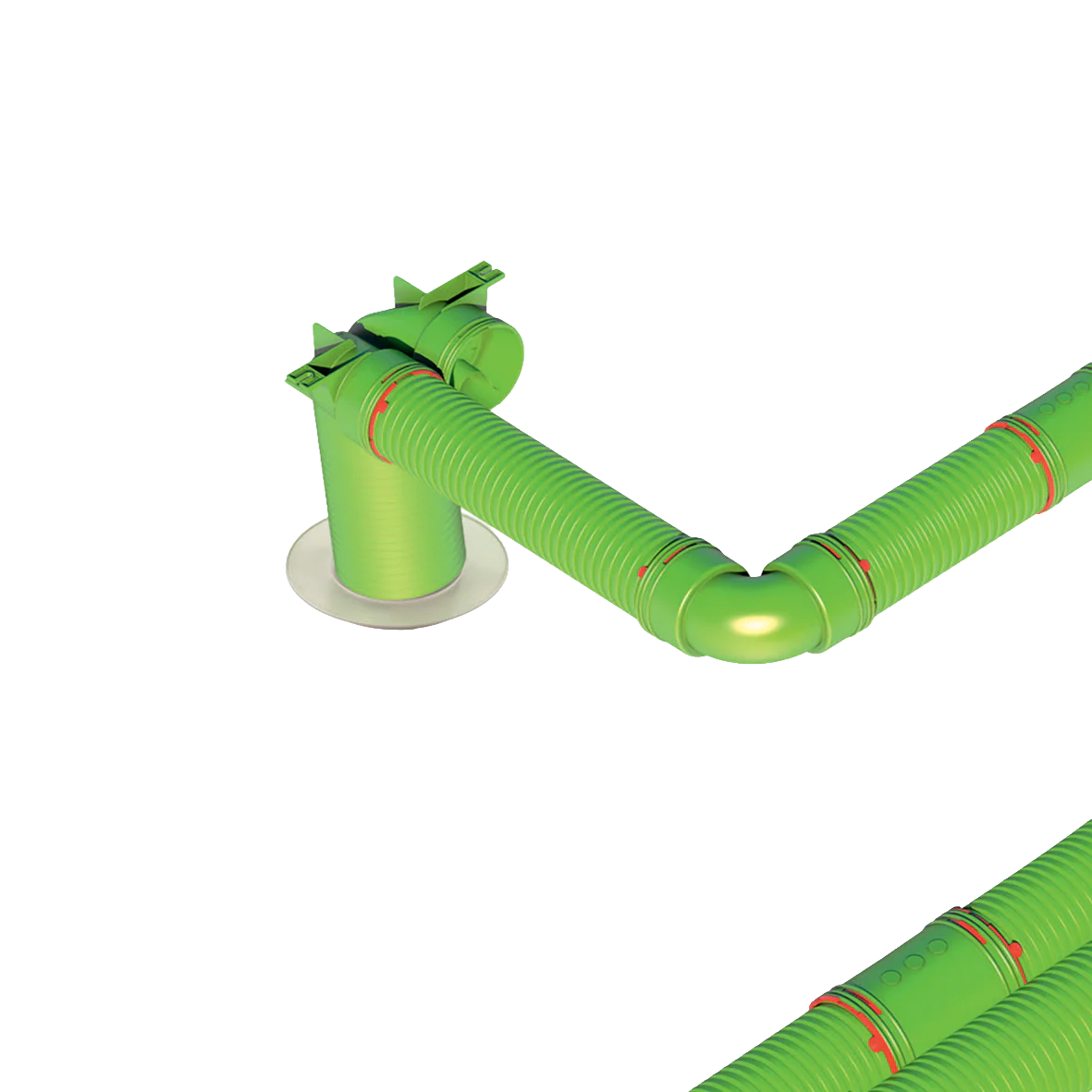

This item should be used when there is not enough space to bend the duct according to its minimum bending radius.

Specifications

General

Product Name	Air Excellent AE34C Bend 90° Kit
Type	Bends
GTIN	8713645216102
Trade Name	Air Excellent

Technical

Colour	Green
Material	PP
Anti Static	✅
Antimicrobial	✅
Airflow Direction	Supply / Extract
Shape	Circular
Dimension	75 mm

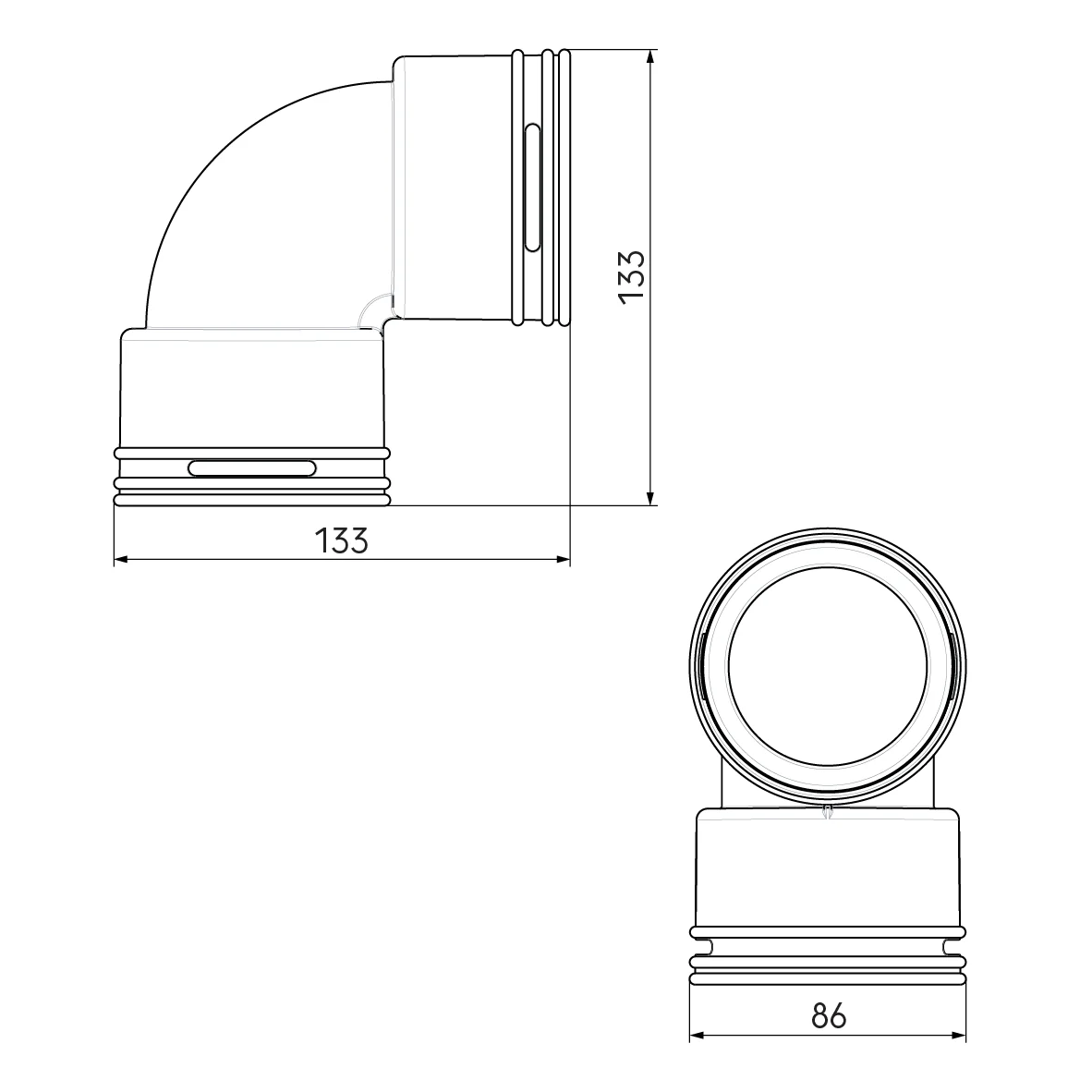

Dimensions

Length Gross	144 mm
Width	86 mm
Height	144 mm
Net Weight	0.12 kg

Logistical

Intrastat	39259080
Base Unit Packaging	Sealed Bag
Gross Weight	0.12 kg
Packaging / Trade Length	144 mm
Packaging / Trade Width	86 mm
Packaging / Trade Height	144 mm

Performance

CE String	-
Temperature Resistance (min.)	-20 °C
Temperature Resistance (max.)	60 °C

Downloads

• Technical data sheet - Air Excellent AE34C Bend 90° Kit
• Declaration of Performance - TÜV SÜD Air Excellent
• Certificate - TÜV SÜD Air Excellent
• Brochure - Air Excellent
• Installation manual - Air Excellent ductwork
