Air Excellent AE35SC Connector Kit

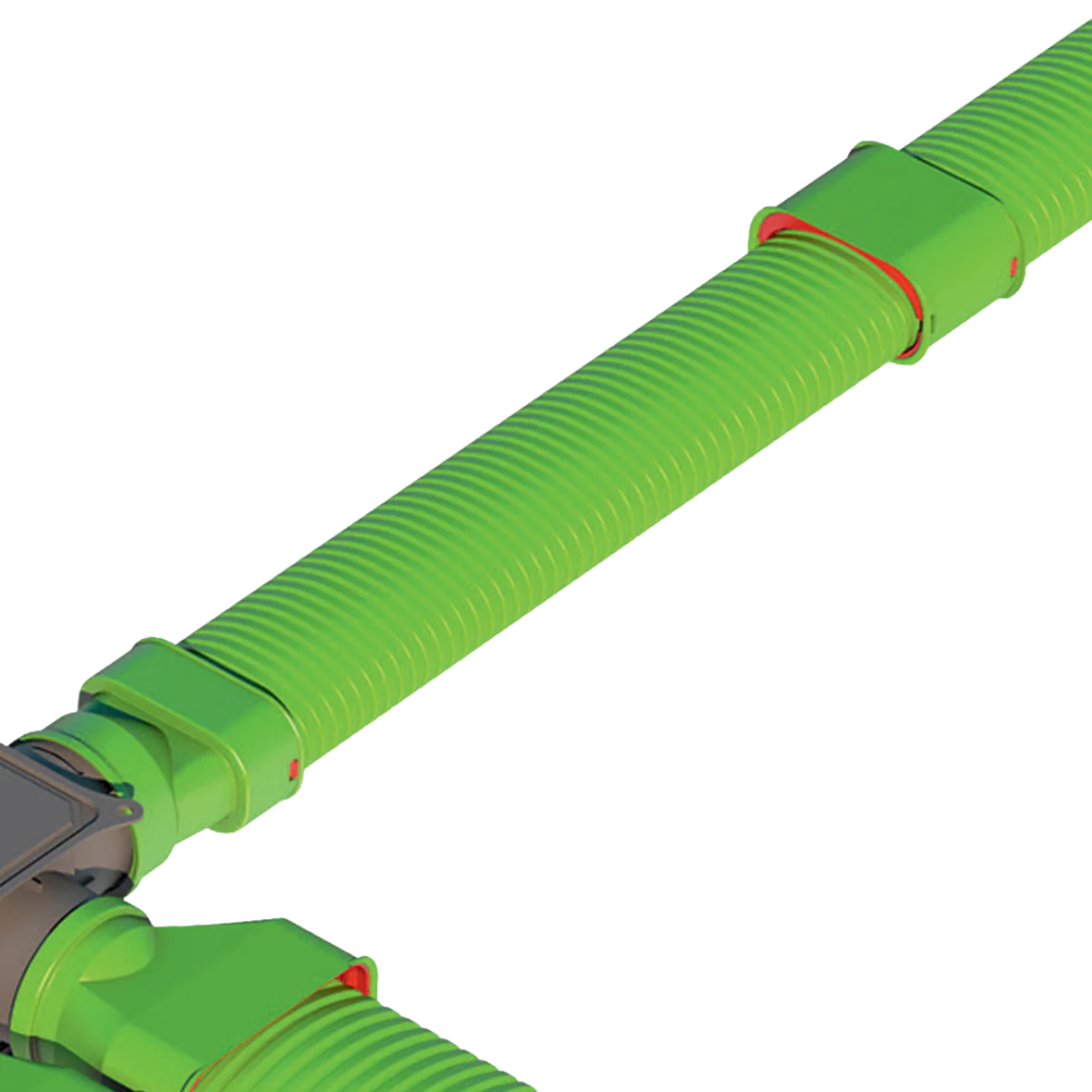

An AE35SC duct accessory used to connect AE35SC ducts. Includes 2 AE35SC seal & click rings to connect the ducts to it.

Kits simplify ordering and eliminate the risk of missing components. Each kit includes everything required to join two Air Excellent ducts, complete with all necessary connectors and seals on both sides.

• Modular manifolds, which can be used with all 6 duct types
• Semi-rigid plastic ducts on a roll and airtight mechanical connections, which are extremely easy to install
• Low system pressure loss due to radial design
• Airtight (class ATC1 up to +/- 1000 Pa) thanks to mechanical connections, which minimises fan energy use and sound production
• TÜV SÜD and ISEGA tested and certified, REACH compliant

Detailed information

This item can be used to connect 2 AE35SC ducts.

Specifications

General

Product Name	Air Excellent AE35SC Connector Kit
Type	Connectors
GTIN	8713645214108
Trade Name	Air Excellent

Technical

Colour	Green
Material	PP
Anti Static	✅
Antimicrobial	✅
Airflow Direction	Supply / Extract
Shape	Semi-Circular

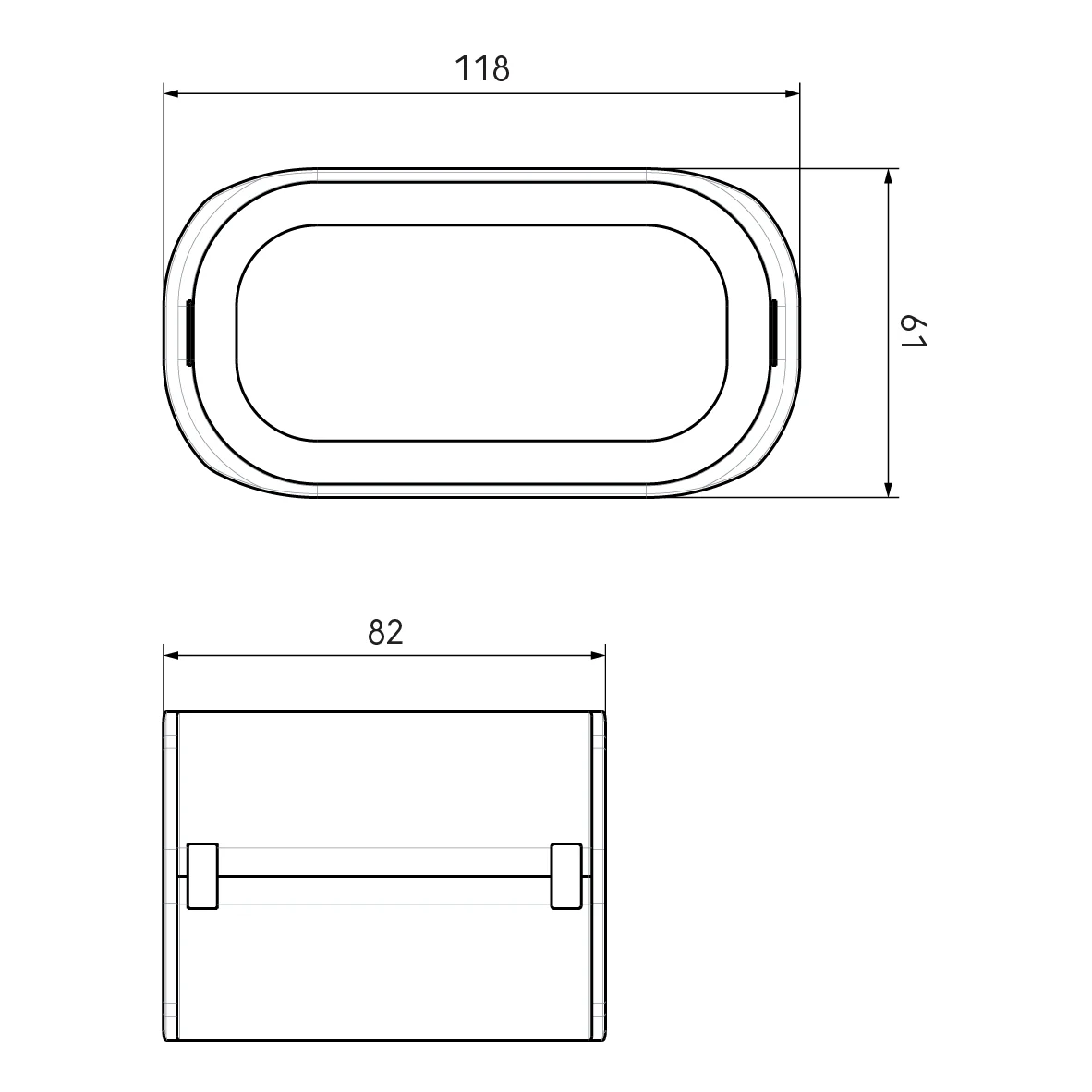

Dimension	50 x 100 mm

Dimensions

Length Gross	82 mm
Width	118 mm
Height	61 mm
Net Weight	0.11 kg

Logistical

Intrastat	39259080
Base Unit Packaging	Sealed Bag
Gross Weight	0.12 kg
Packaging / Trade Length	182 mm
Packaging / Trade Width	115 mm
Packaging / Trade Height	60 mm

Performance

CE String	-
Temperature Resistance (min.)	-20 °C
Temperature Resistance (max.)	60 °C

Downloads

• Technical data sheet - Air Excellent AE35SC Connector Kit
• Declaration of Performance - TÜV SÜD Air Excellent
• Certificate - TÜV SÜD Air Excellent
• Brochure - Air Excellent
• Installation manual - Air Excellent ductwork
