Air Excellent AE35SC Horizontal Bend 90° Kit

An AE35SC duct accessory. Includes 2 AE35SC seal & click rings to connect the ducts to it.

• Modular manifolds, which can be used with all 6 duct types
• Semi-rigid plastic ducts on a roll and airtight mechanical connections, which are extremely easy to install
• Low system pressure loss due to radial design
• Airtight (class ATC1 up to +/- 1000 Pa) thanks to mechanical connections, which minimises fan energy use and sound production
• TÜV SÜD and ISEGA tested and certified, REACH compliant

Detailed information

This item should be used when there is not enough space to bend the duct according to its minimum bending radius.

Specifications

General

Product Name	Air Excellent AE35SC Horizontal Bend 90° Kit
Type	Bends
GTIN	8713645214115
Trade Name	Air Excellent

Technical

Colour	Green
Material	PP
Anti Static	✅
Antimicrobial	✅
Airflow Direction	Supply / Extract
Shape	Semi-Circular
Dimension	50 x 100 mm

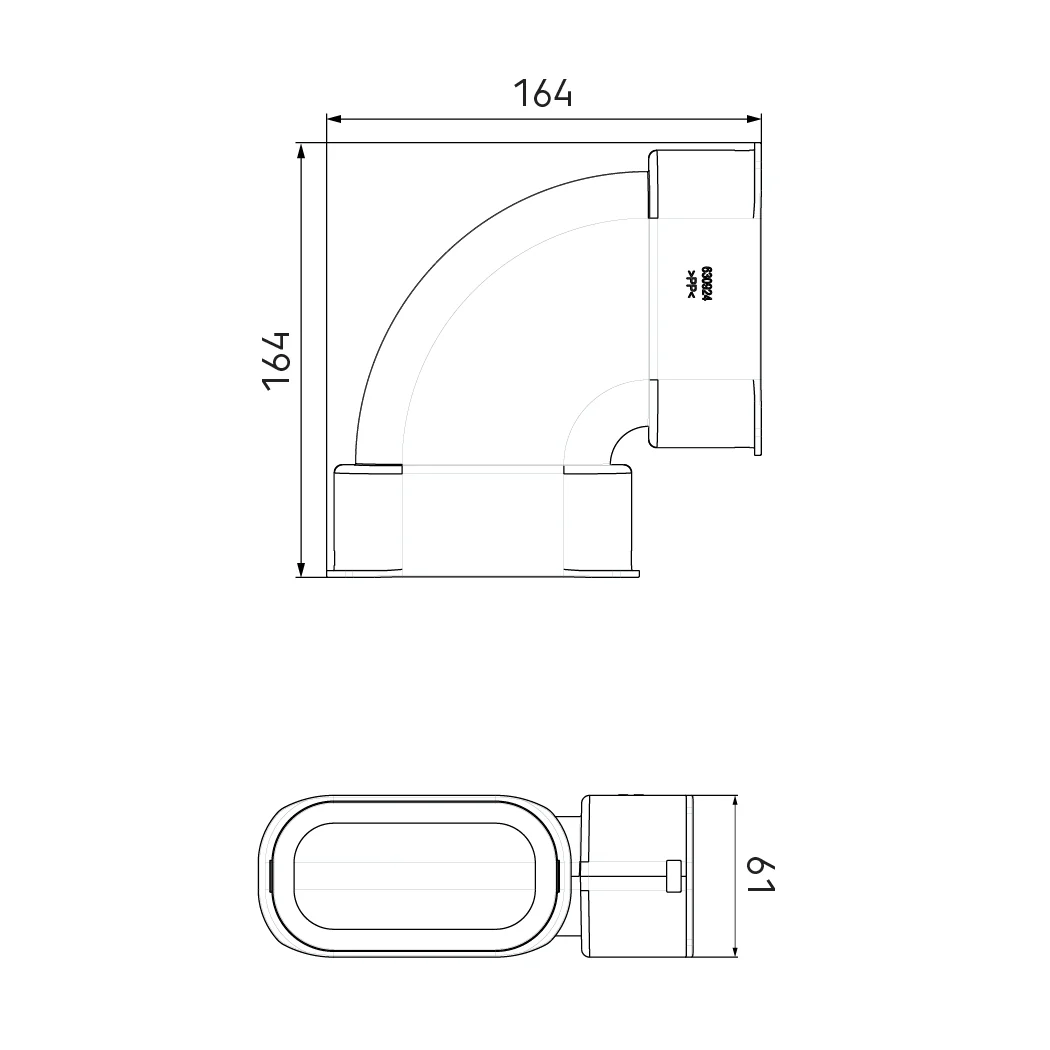

Dimensions

Length Gross	164 mm
Width	164 mm
Height	61 mm
Net Weight	0.17 kg

Logistical

Intrastat	39259080
Base Unit Packaging	Sealed Bag
Gross Weight	0.18 kg
Packaging / Trade Length	204 mm
Packaging / Trade Width	204 mm
Packaging / Trade Height	65 mm

Performance

CE String	-
Temperature Resistance (min.)	-20 °C
Temperature Resistance (max.)	60 °C
