Air Excellent AE48C Connection Kit (Distribution Box - Valve Adaptor)

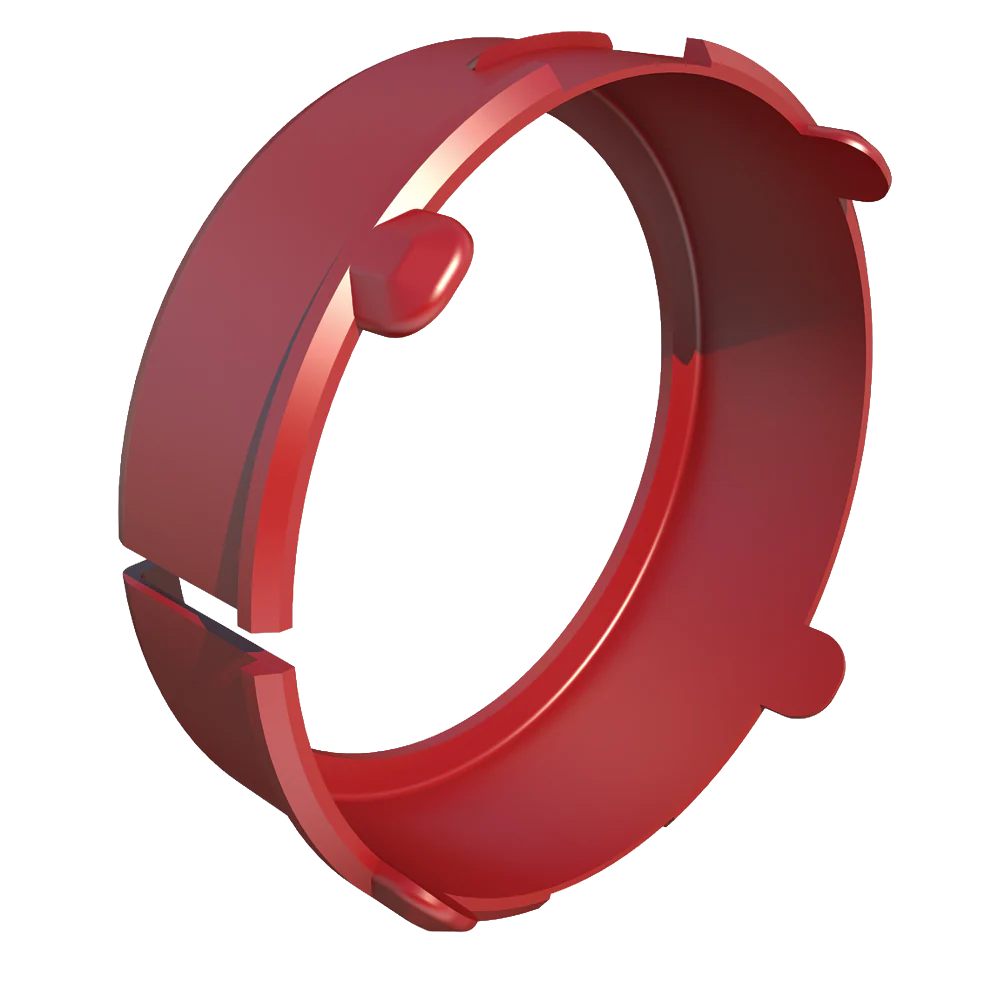

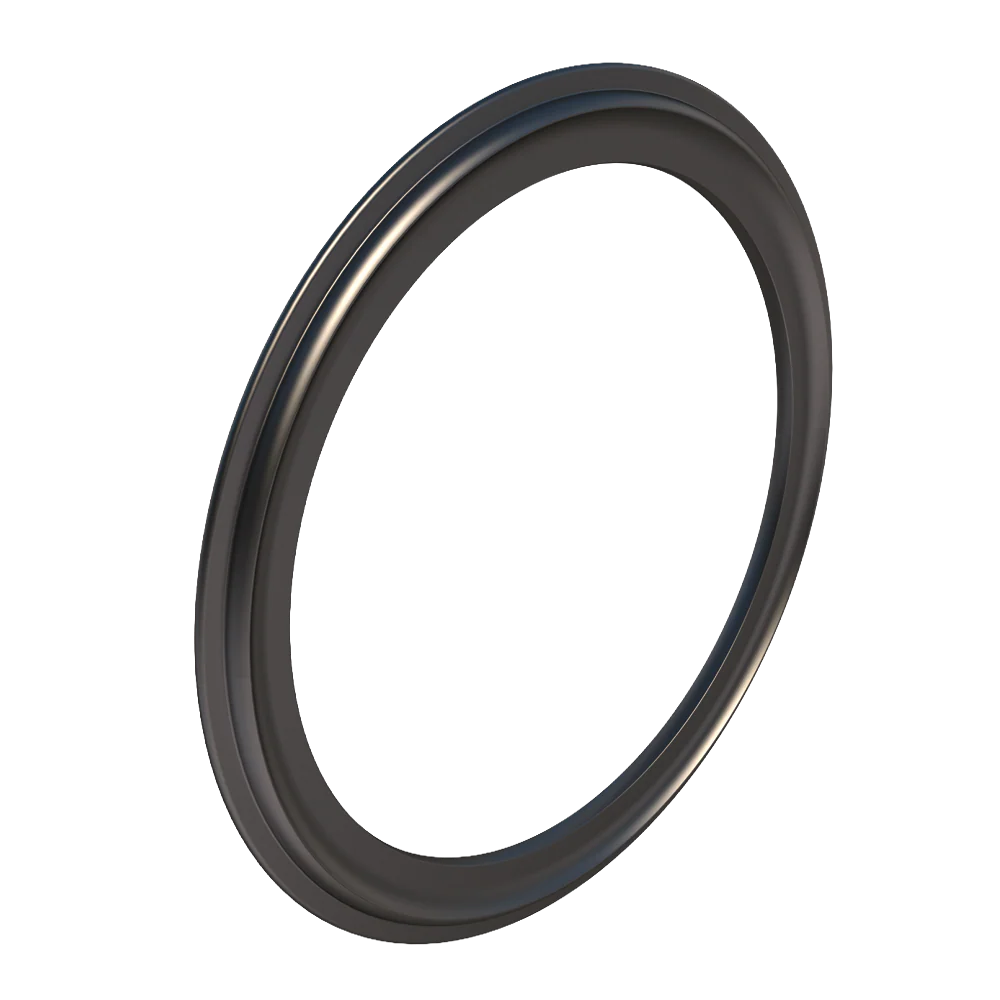

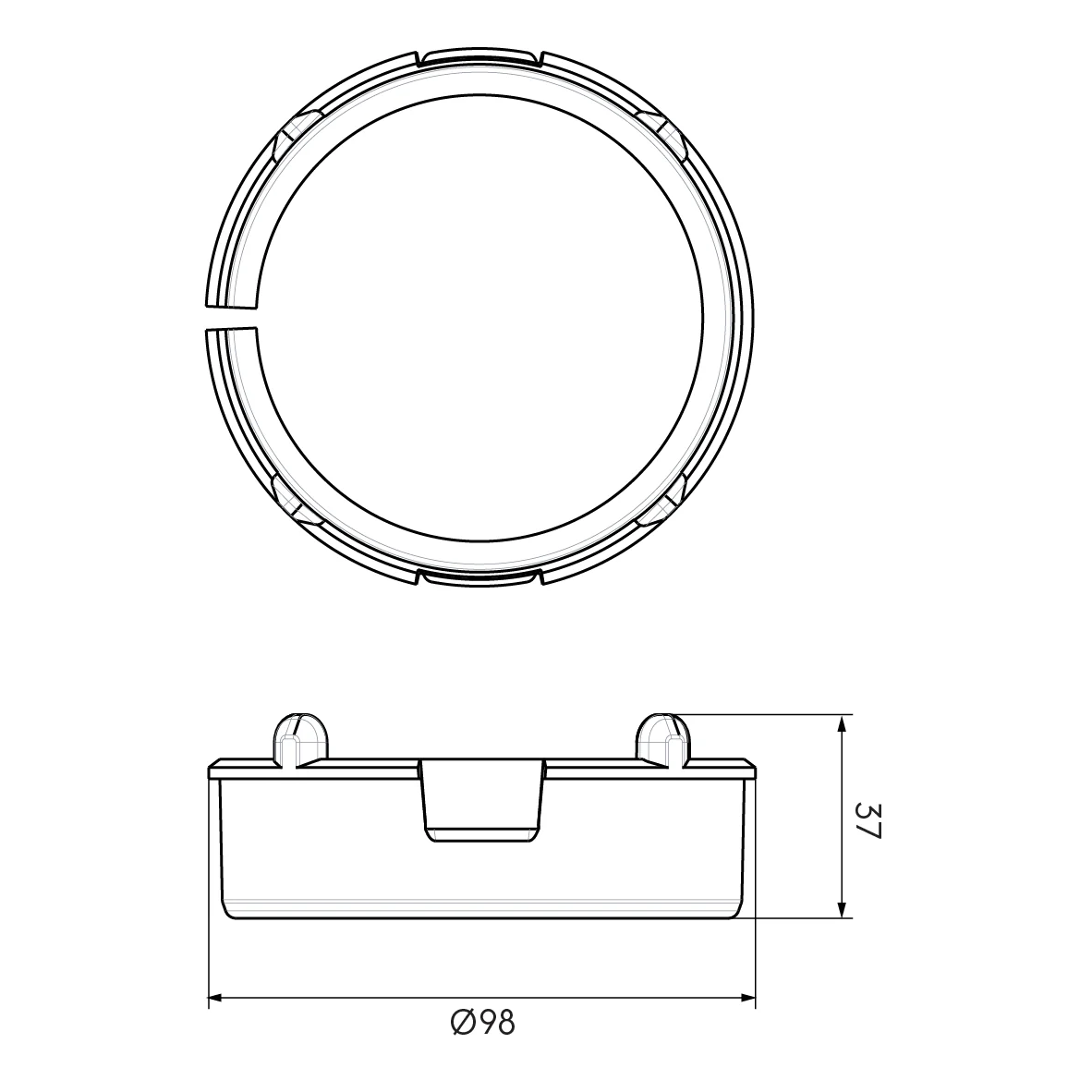

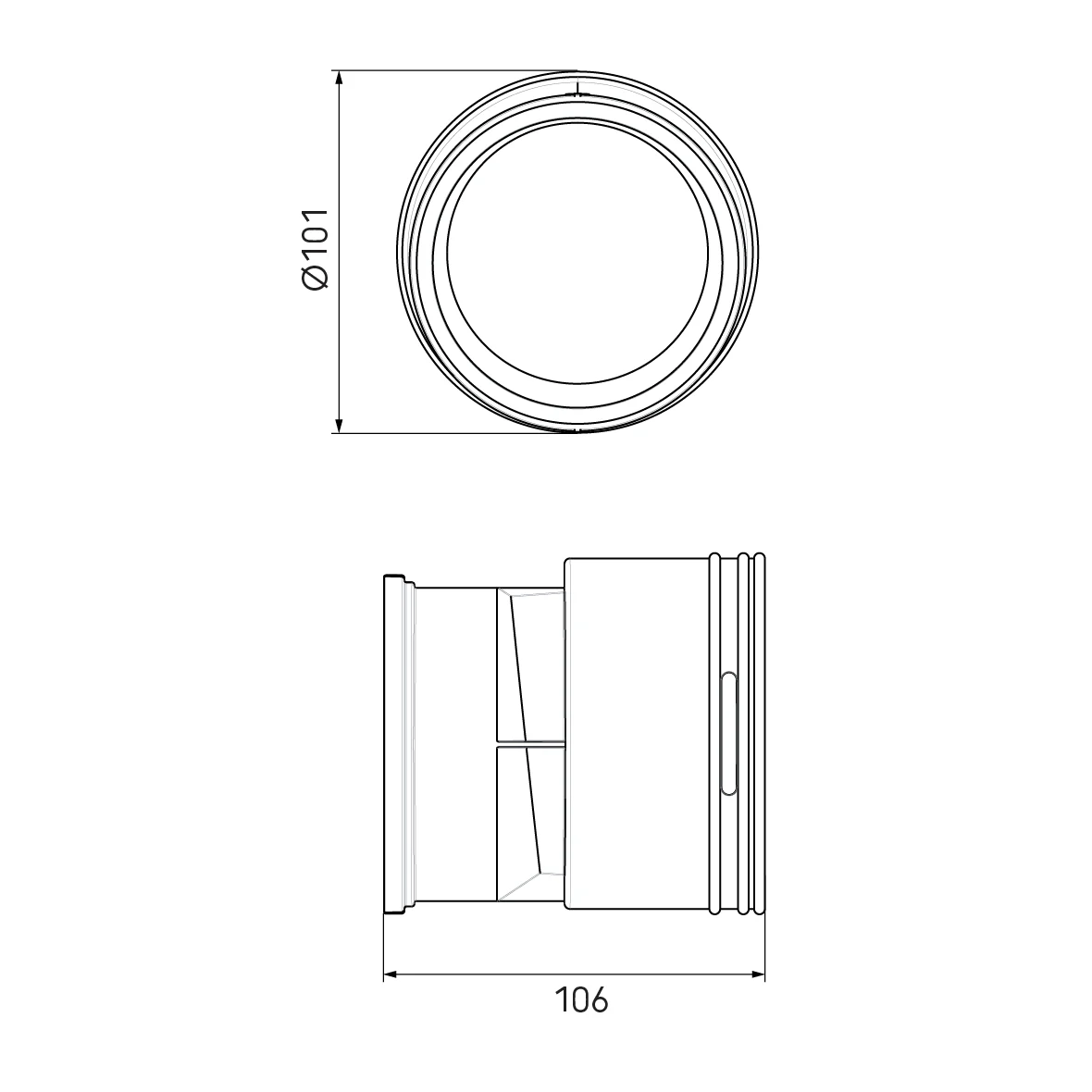

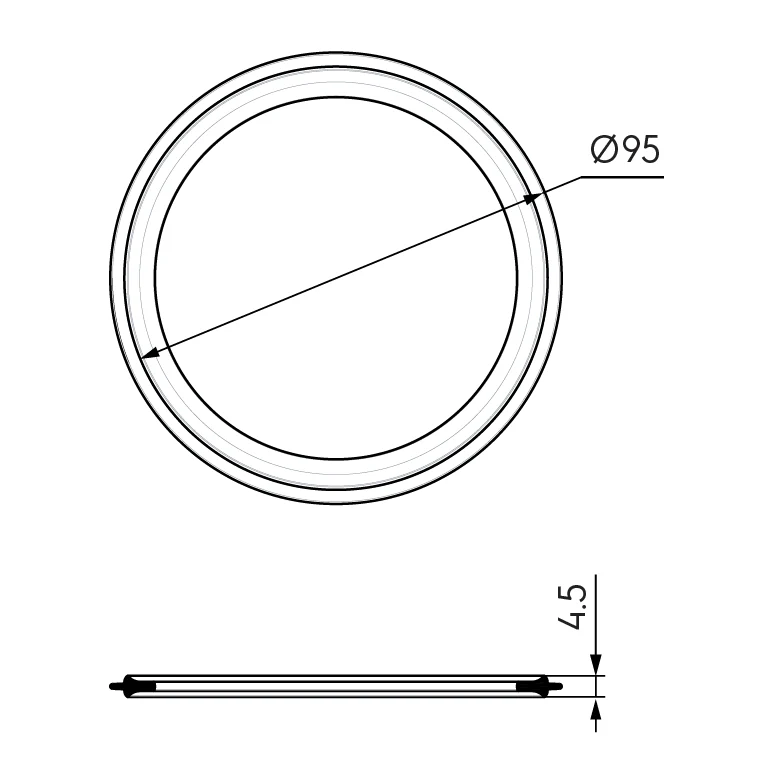

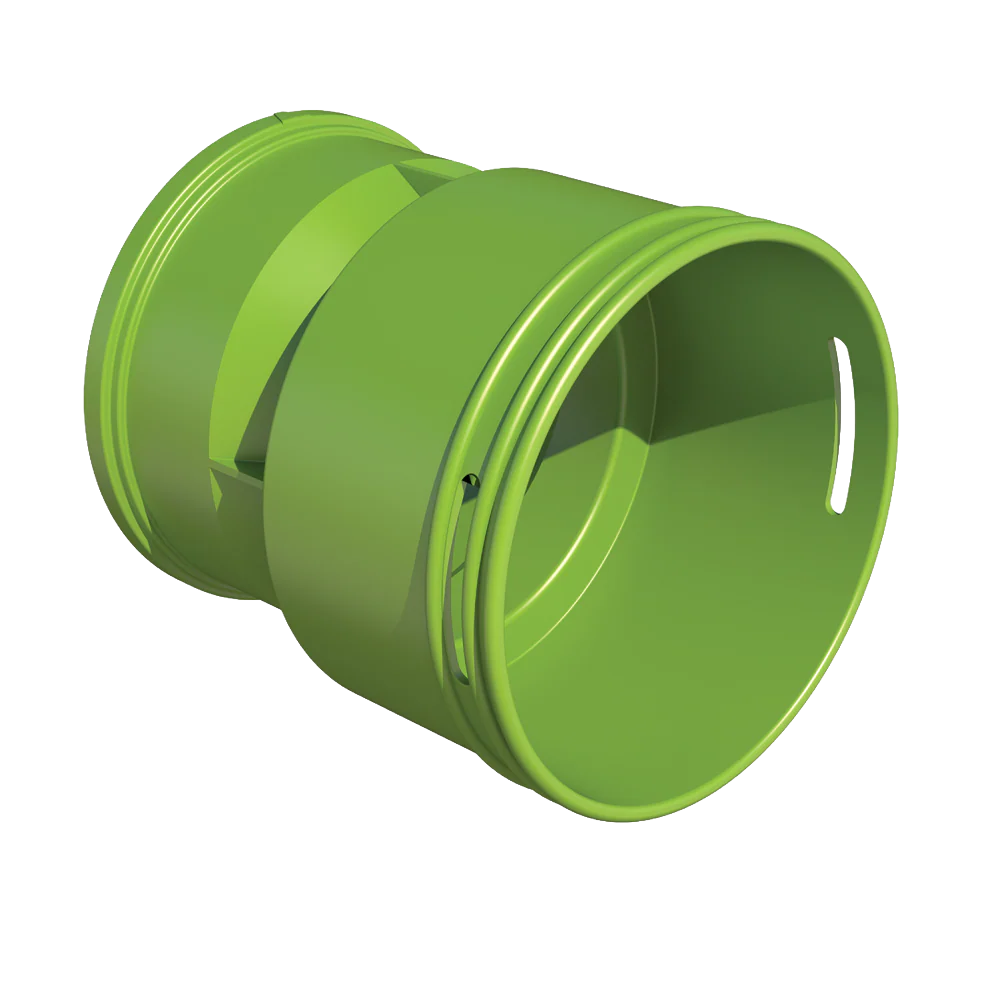

An AE48C duct accessory used to make airtight mechanical connections without tape or sealant. Includes 1 AE48C DBOX adaptor, 2 AE48C seal rings and 2 AE48C click rings to connect 1 AE48C duct between a valve adaptor and a distribution box.

Kits simplify ordering and eliminate the risk of missing components. Each kit includes everything required to connect a valve adaptor to a distribution box via one length of semi-rigid ducting, complete with all necessary connectors and seals at both ends.

• Modular manifolds, which can be used with all 6 duct types
• Semi-rigid plastic ducts on a roll and airtight mechanical connections, which are extremely easy to install
• Low system pressure loss due to radial design
• Airtight (class ATC1 up to +/- 1000 Pa) thanks to mechanical connections, which minimises fan energy use and sound production
• TÜV SÜD and ISEGA tested and certified, REACH compliant

Detailed information

This item should be used to connect a duct to the Air Excellent distribution boxes and its accessories and creates a class ATC1 airtight connection up to +/- 1000 Pa.

Specifications

General

Product Name	Air Excellent AE48C Distribution Box Connection Kit
Type	Seals and Connectors
GTIN	8713645239712
Trade Name	Air Excellent

Technical

Colour	Green, Red and Black
Material	PP and EPDM
Anti Static	✅
Antimicrobial	✅
Airflow Direction	Supply / Extract
Shape	Circular
Dimension	90 mm

Dimensions

Length Gross	101 mm
Width	101 mm
Height	106 mm
Net Weight	0.139 kg

Logistical

Intrastat	39259080
Base Unit Packaging	Sealed Bag
Gross Weight	0.139 kg
Packaging / Trade Length	101 mm
Packaging / Trade Width	101 mm
Packaging / Trade Height	106 mm

Performance

CE String	-
Temperature Resistance (min.)	-20 °C
Temperature Resistance (max.)	60 °C

Downloads

• Technical data sheet - Air Excellent AE48C Distribution Box Connection Kit
• Declaration of Performance - TÜV SÜD Air Excellent
• Certificate - TÜV SÜD Air Excellent
• Brochure - Air Excellent
• Installation manual - Air Excellent ductwork
