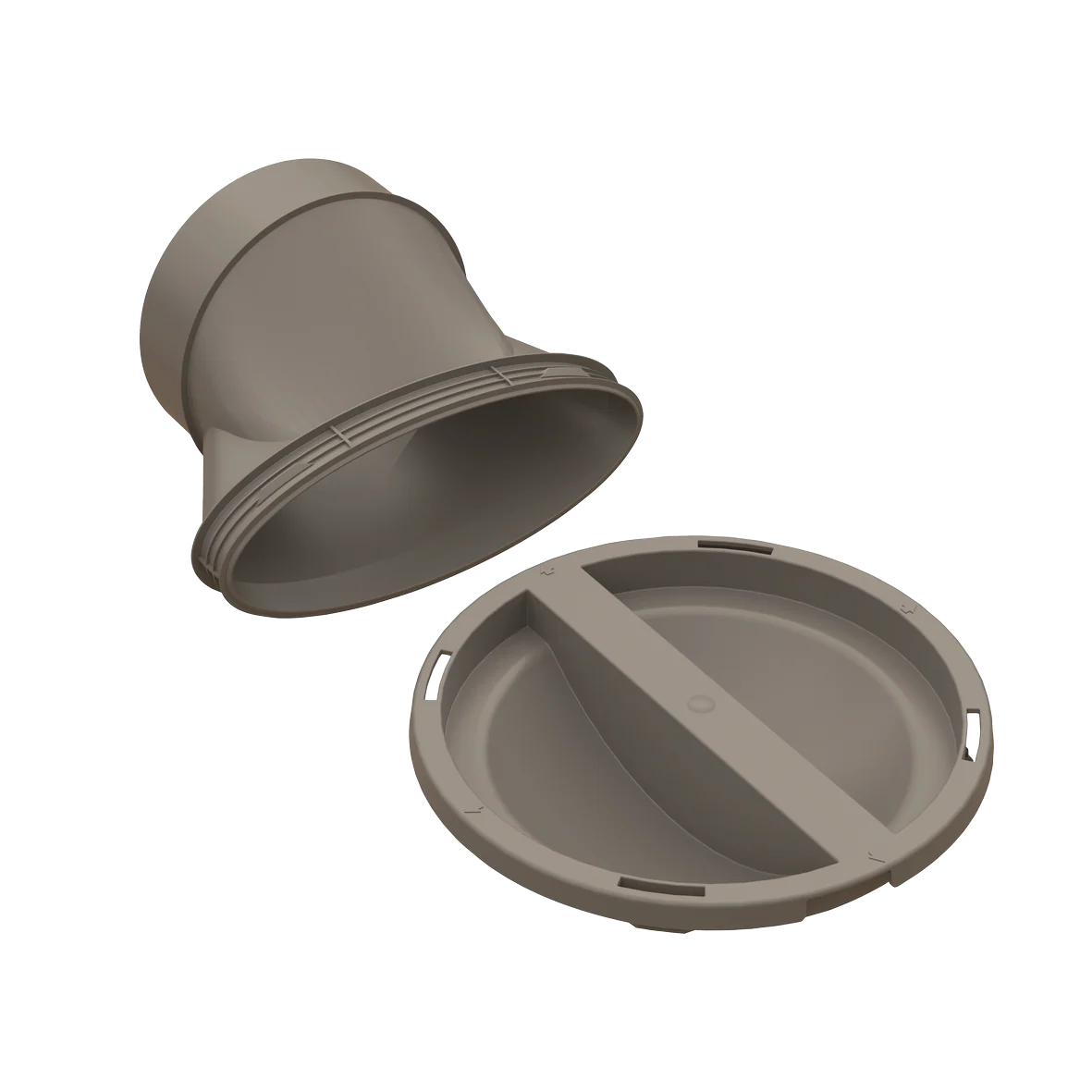

Air Excellent Distribution Box 206 Inline Adaptor Kit DN125

An Air Excellent distribution box accessory used to convert the DBOX 206V to an Air Excellent DBOX 206 Inline DN125.

• Modular manifolds, which can be used with all 6 duct types
• Semi-rigid plastic ducts on a roll and airtight mechanical connections, which are extremely easy to install
• Low system pressure loss due to radial design
• Airtight (class ATC1 up +/- 1000 Pa) thanks to mechanical connections, which minimises fan energy use and sound production
• TÜV SÜD and ISEGA tested and certified, REACH compliant

Detailed information

This item can be used to convert the Air Excellent DBOX 206V to an Air Excellent DBOX 206 Inline DN125.

Specifications

General

Product Name	Air Excellent DBOX 206 Inline Adaptor Kit DN125
Type	Adaptors
GTIN	8713645217123
Trade Name	Air Excellent

Technical

Colour	Grey
Material	PP
Anti Static	✅
Antimicrobial	✅
Airflow Direction	Supply / Extract
Dimension	125 mm

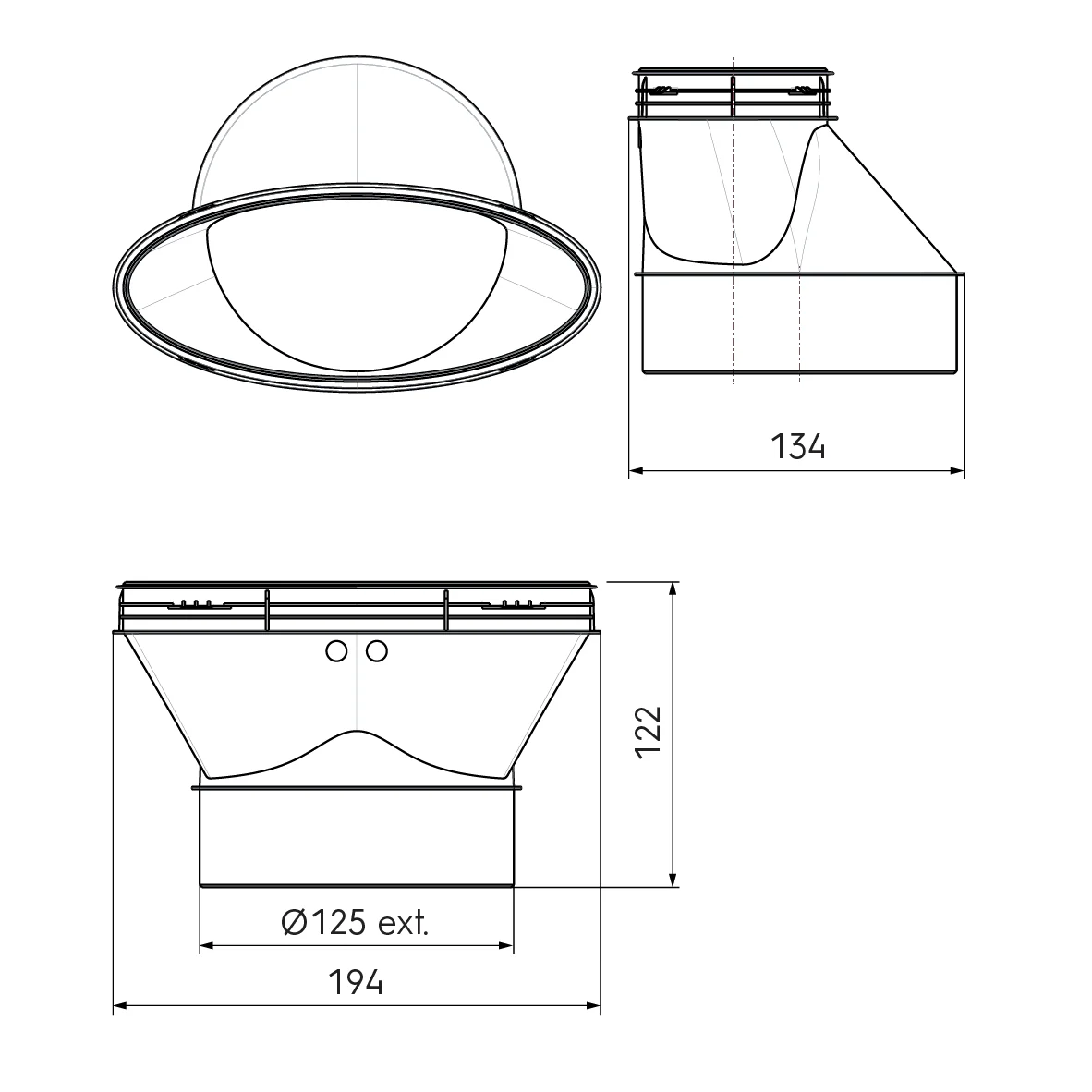

Dimensions

Length Gross	122 mm
Width	194 mm
Height	134 mm
Net Weight	0.19 kg

Logistical

Intrastat	39259080
Base Unit Packaging	Box
Gross Weight	0.43 kg
Packaging / Trade Length	262 mm
Packaging / Trade Width	201 mm
Packaging / Trade Height	181 mm

Performance

CE String	-
Temperature Resistance (min.)	-20 °C
Temperature Resistance (max.)	60 °C

Downloads

• Certificate - TÜV SÜD Air Excellent
• Technical data sheet - Air Excellent Distribution Box 206 Inline Adaptor Kit DN125
• Brochure - Air Excellent

Videos
