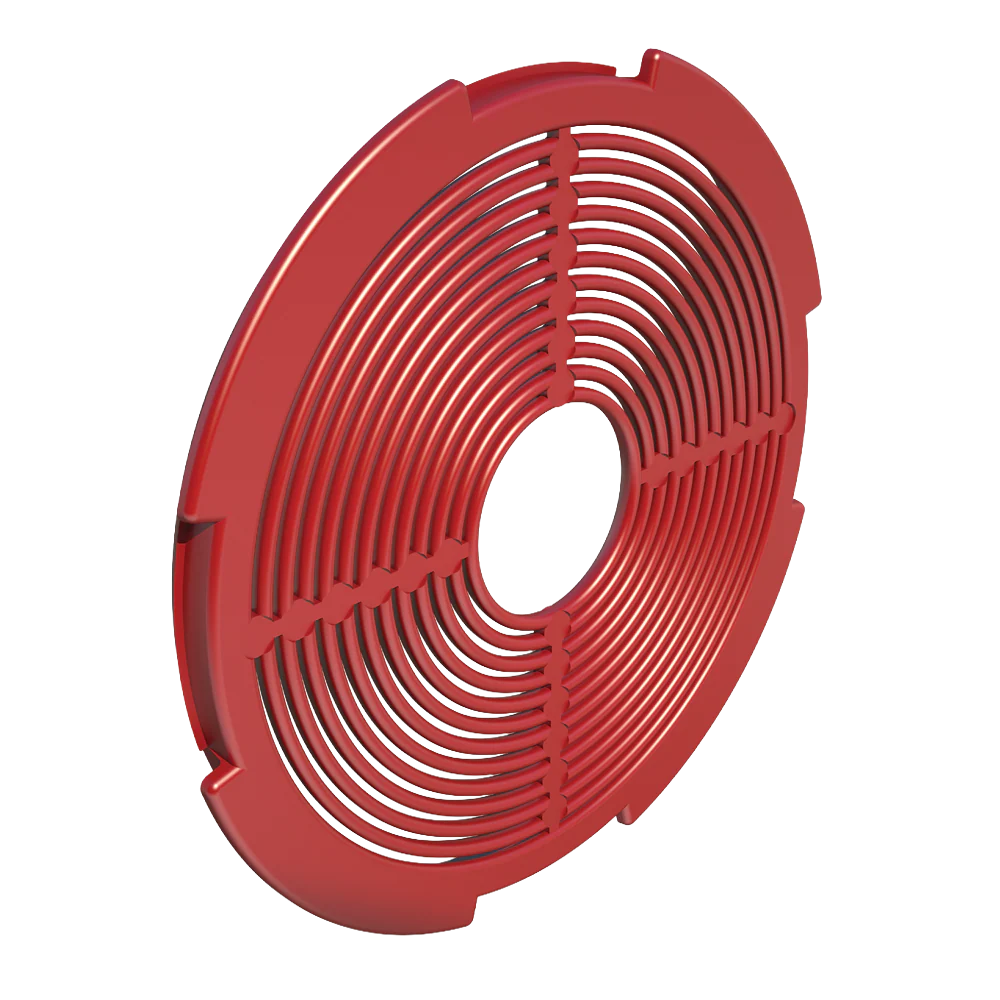

Air Excellent Distribution Box Internal Air Restrictor Ring

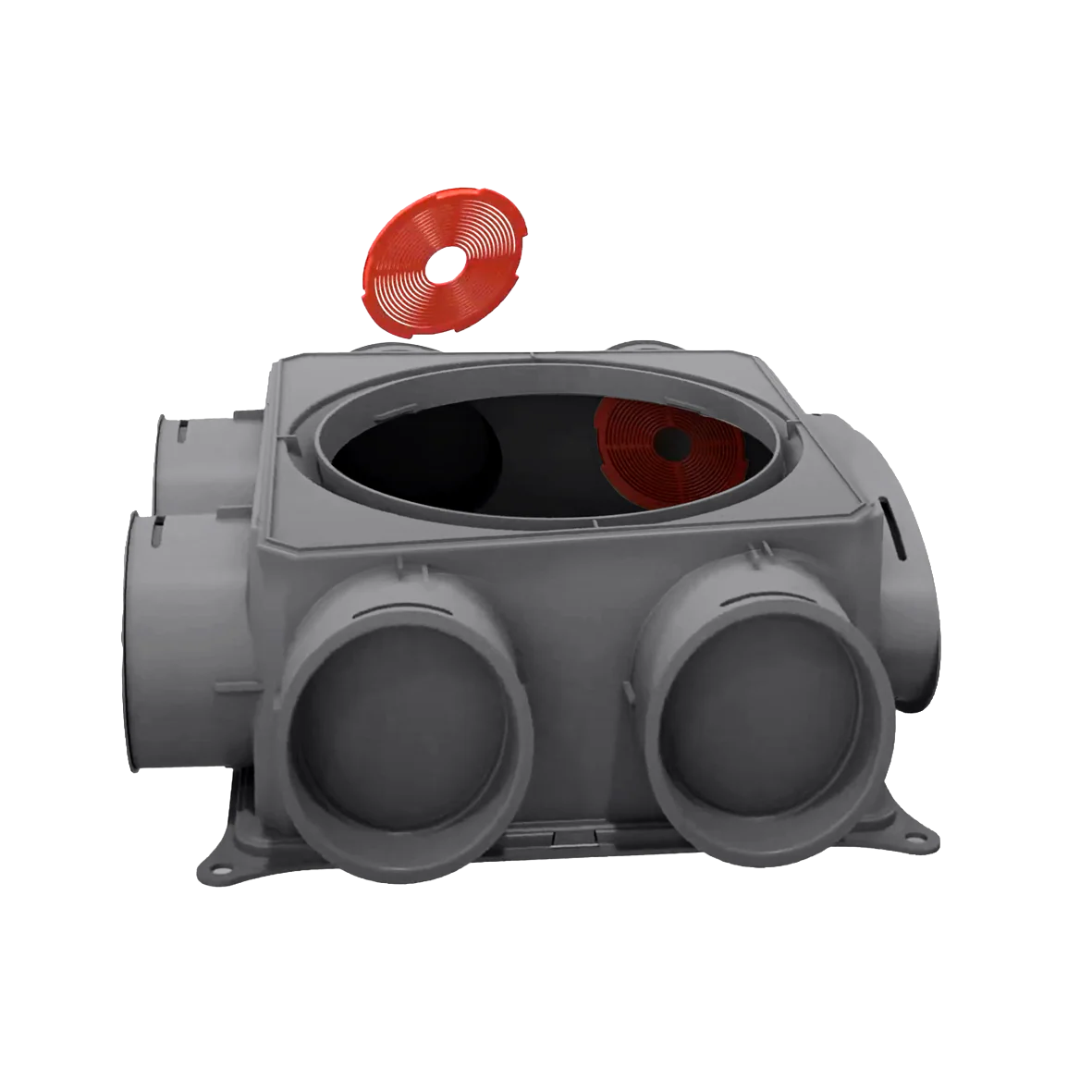

The Air Excellent DBOX Internal Air Restrictor Rings, installed in the distribution box, allows precise adjustment of the air flow rate for each duct, ensuring optimal ventilation performance. Each restrictor features twelve rings, with settings determined by the Aerflux configurator that indicates how many rings to remove. The rings are easily applied with simple pressure and can be quickly removed for cleaning or maintenance.

• Precise air flow control for each duct individually
• Easy, tool-free adjustment

Specifications

General

Product Name	Air Excellent DBOX Internal Air Restrictor Ring
Type	Accessories
GTIN	8713645213507
Trade Name	Air Excellent

Technical

Colour	Red
Material	PP
Anti Static	✅
Antimicrobial	✅
Airflow Direction	Supply / Extract
Shape	Circular

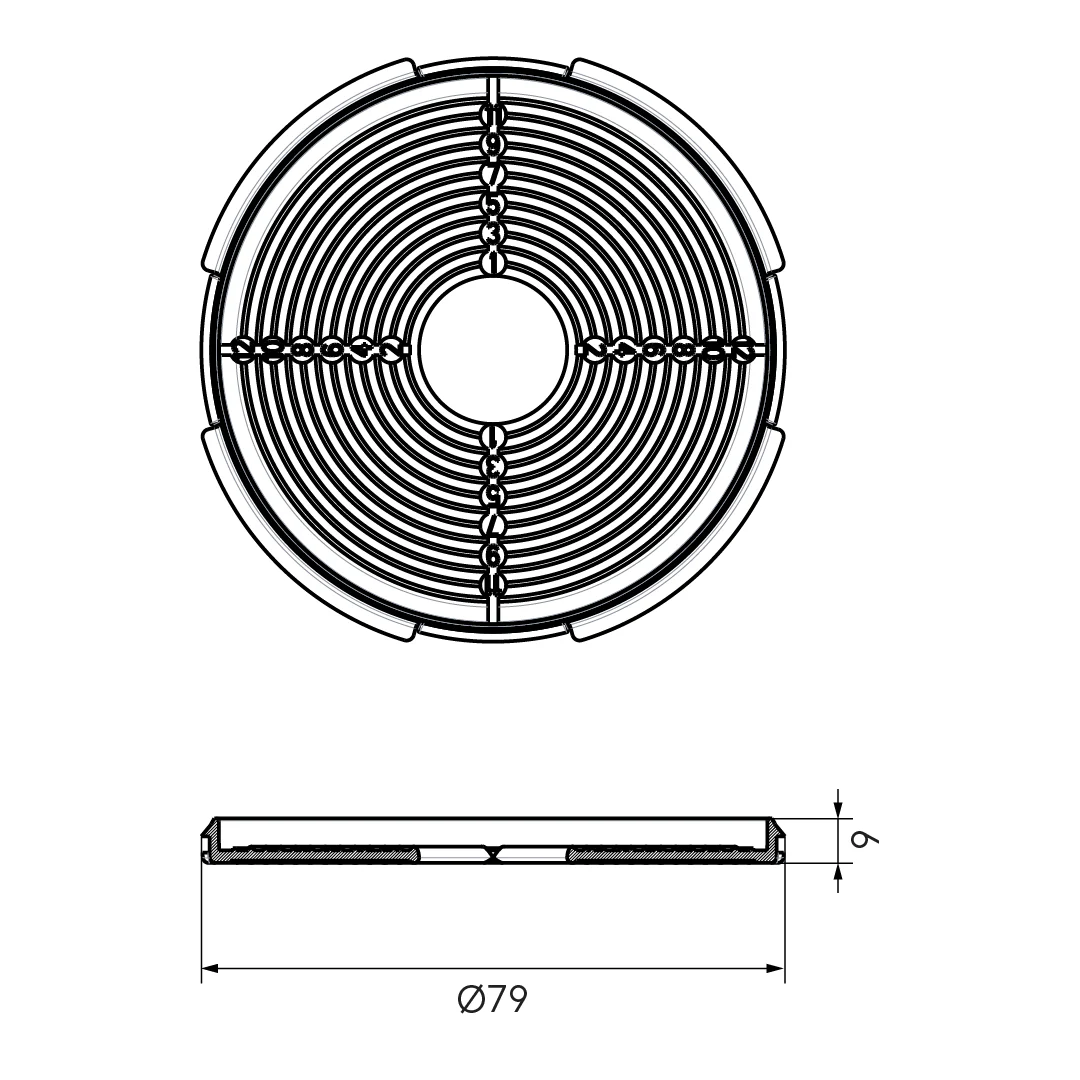

Dimension	75 mm

Dimensions

Length Gross	79 mm
Width	79 mm
Height	9 mm
Net Weight	0.01 kg

Logistical

Intrastat	39259080
Base Unit Packaging	Unpacked
Gross Weight	0.01 kg
Packaging / Trade Length	79 mm
Packaging / Trade Width	79 mm
Packaging / Trade Height	9 mm

Performance

CE String	-
Temperature Resistance (min.)	-20 °C
Temperature Resistance (max.)	60 °C

Downloads

• Declaration of Performance - TÜV SÜD Air Excellent
• Technical data sheet - Air Excellent Distribution Box Internal Air Restrictor Ring
• Certificate - TÜV SÜD Air Excellent
• Brochure - Air Excellent
