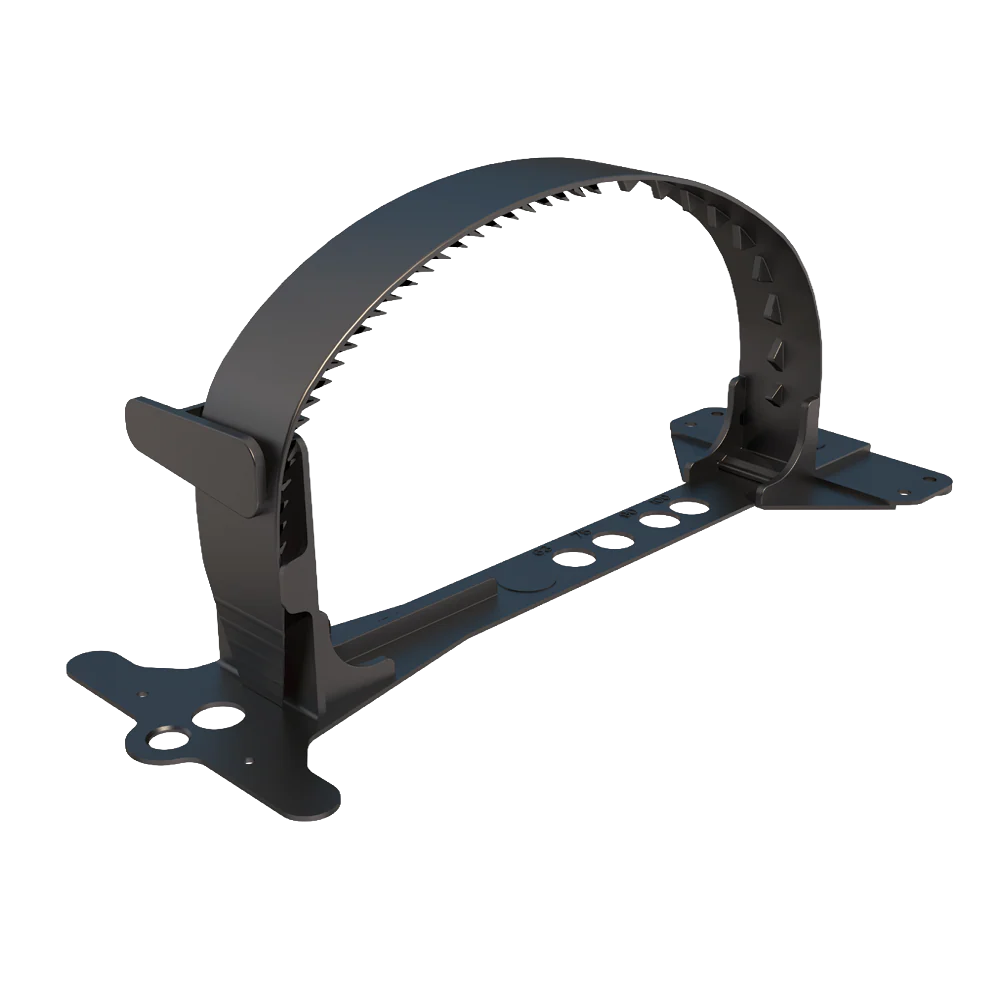

Air Excellent Universal Mounting Bracket

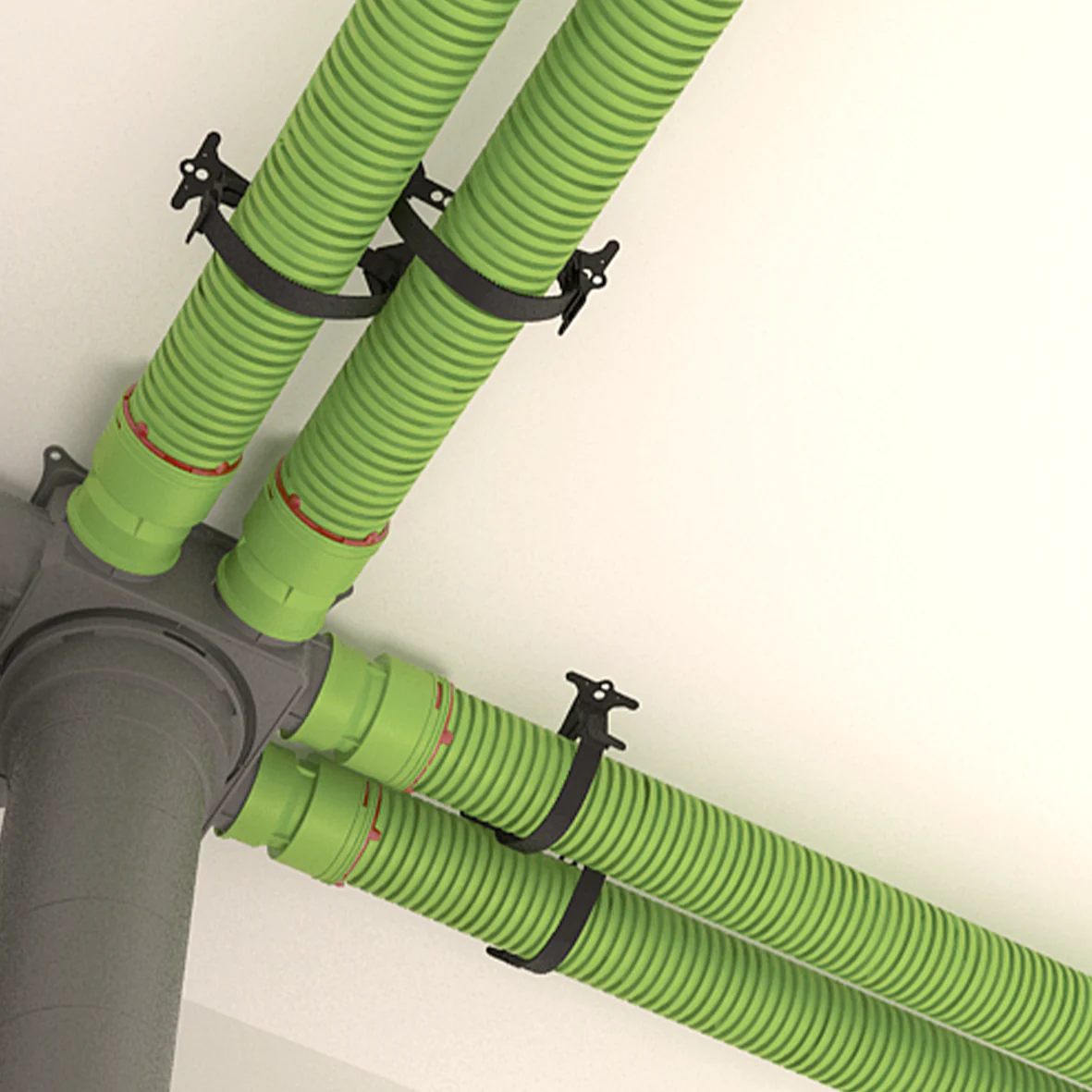

An accessory used to support all Air Excellent ducts. We advise using one every 2 meters to prevent sagging. The mounting bracket can be connected to other mounting brackets enabling compact installations with parallel duct runs.

• Modular manifolds, which can be used with all 6 duct types
• Semi-rigid plastic ducts on a roll and airtight mechanical connections, which are extremely easy to install
• Low system pressure loss due to radial design
• Airtight (class ATC1 up to +/- 1000 Pa) thanks to mechanical connections, which minimises fan energy use and sound production
• TÜV SÜD and ISEGA tested and certified, REACH compliant

Detailed information

This item can be used to fix all Air Excellent ducts to a surface. We advise using one every 2m to prevent sagging.

10 x Universal Mounting Brackets per box.

Specifications

General

Product Name	Air Excellent Universal Mounting Bracket
Type	Mounting Brackets
GTIN	8713645212784
Trade Name	Air Excellent

Technical

Colour	Black
Material	PP
Duct Dimension	50 x 100 mm / 50 x 140 mm / 60 x 130 mm / 63 mm / 75 mm / 90 mm

Dimensions

Net Weight

0.008 kg

Logistical

Intrastat	39259080
Base Unit Packaging	Box
Number per Box	10
Gross Weight	0.205 kg
Packaging / Trade Length	298 mm
Packaging / Trade Width	198 mm
Packaging / Trade Height	125 mm

Downloads

• Technical data sheet - Air Excellent Universal Mounting Bracket
• Declaration of Performance - TÜV SÜD Air Excellent
• Certificate - TÜV SÜD Air Excellent
• Brochure - Air Excellent
• Installation manual - Air Excellent ductwork
