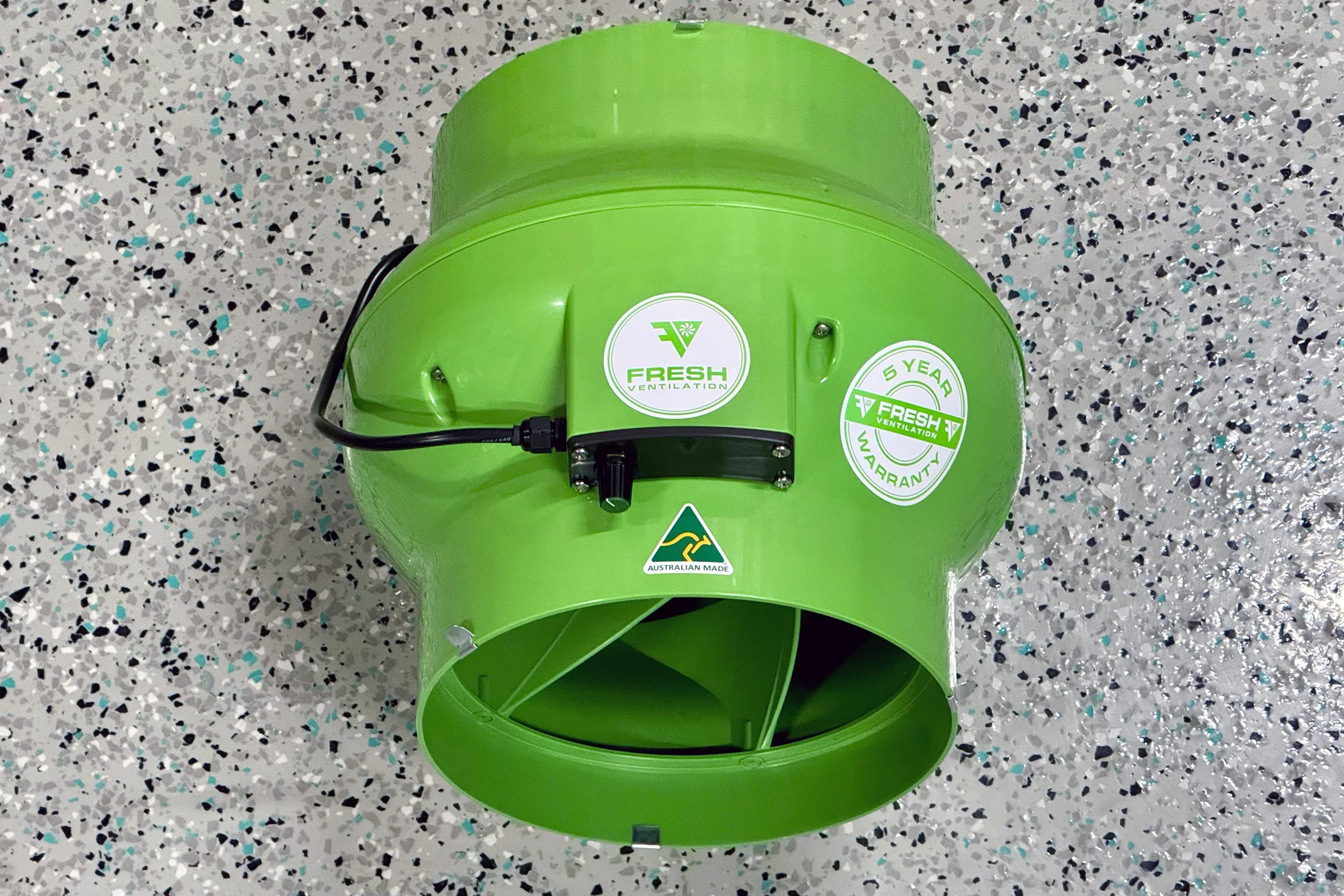

Centrifugal Inline Fans: ebm-papst (EC Motors)

AC Motors vs EC Motors

AC motors are cheaper than EC motors but still provide excellent performance. They are very quiet during operation and move large volumes of air through ducting. They operate at one fixed speed where they are most efficient.

In real world use, EC motors provide even higher air flow, are extremely quiet during operation, are capable of silent operation at reduced fan speeds, have smoother fan rotation, and consume almost no power at reduced fan speeds. EC motors have adjustable speed and are very efficient at all speeds.

EC Motor Centrifugal Fans

Our 150mm EC motor centrifugal fans have the following qualities:

• Variable speed
• 310 m³/h air flow and 10 W power usage
• 445 m³/h air flow and 24 W power usage
• 580 m³/h air flow and 49 W power usage
• 735 m³/h air flow and 83 W power usage
• Extremely low noise during operation
• Can be silent at reduced fan speeds during operation
• R3G190 motor manufactured by ebm-papst in Germany
• Custom Australian made fan housing
• 5 year warranty
• IP 54 protection rating.

Our 200mm EC motor centrifugal fans have the following qualities:

• Variable speed
• 505 m³/h air flow and 10 W power usage
• 650 m³/h air flow and 22 W power usage
• 795 m³/h air flow and 40 W power usage
• 1,015 m³/h air flow and 84 W power usage
• Extremely low noise during operation
• Can be silent at reduced fan speeds during operation
• R3G220 motor manufactured by ebm-papst in Germany
• Custom Australian made fan housing
• 5 year warranty
• IP 54 protection rating.

Our 300mm EC motor centrifugal fans have the following qualities:

• Variable speed
• 1,180 m³/h air flow and 19 W power usage at 4V
• 1,530 m³/h air flow and 43 W power usage at 6V
• 1,885 m³/h air flow and 80 W power usage at 8V
• 2,335 m³/h air flow and 152 W power usage at 10V
• Extremely low noise during operation
• Can be silent at reduced fan speeds during operation
• R3G280 motor manufactured by ebm-papst in Germany
• Custom Australian made fan housing
• 5 year warranty
• IP 54 protection rating.

Normal Profile Fans vs Low Profile Fans

Normal Profile is our standard fan configuration. Normal Profile fans are round with a diameter of 342mm. Normal Profile fans are recommended for most installations.

Low Profile fans are available for shallow installations where access is limited. Low Profile fans are oval with a width of 340mm and a height of 217mm. The smaller footprint means that air flow is reduced by about 10%, but they still provide exceptional performance as their shallow environments generally have less cubic volume to ventilate.
