Internal Spacers for LUNOS e²60 (3D Printed)
3D Printed Internal Spacers for LUNOS e²60
Made to Order
• Our 3D printed products are made to order.
• Please allow 1 to 2 days for manufacturing before shipment.
• Please call us if your order is urgent.

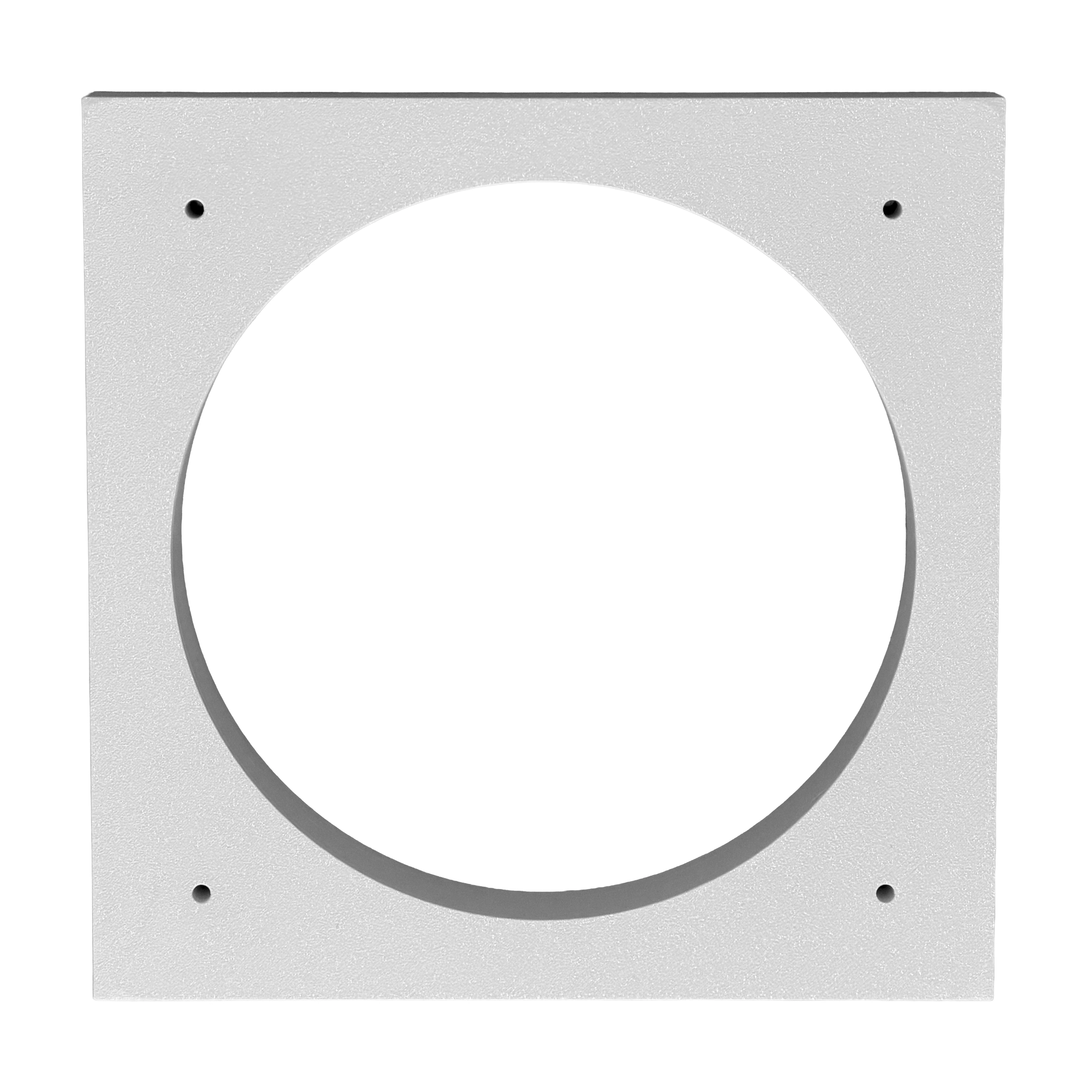

Our 3D printed internal spacers are precision-engineered to fit seamlessly behind the LUNOS e²60 decentralised ERV system’s internal grille. Produced in-house on a professional 3D printer using UV stable acrylonitrile styrene acrylate (ASA), they provide outstanding strength, temperature resistance, and long-term durability — making them ideal for continuous use in both residential and commercial ventilation applications.
The LUNOS e²60 requires a minimum wall thickness of 190mm. These custom-designed spacers enable you to build out the internal wall depth around the e²60 core, ensuring the internal grille installs cleanly and securely. They’re the perfect solution when the external wall is thinner than the required installation depth.
Each spacer is printed with a Bambu Lab H2D Pro and undergoes fit testing to guarantee a snug, leak-free connection — designed and made in Australia to support quality LUNOS e²60 installations.
Specifications
- Dimensions: 198mm x 198mm
- Internal Hole Diameter: 162mm
- Depth: 30mm / 60mm / 90mm
- Screw Thread Size: 4.2mm (8g)
- Countersunk Size: 10mm
- Countersunk Depth: 15mm (30mm) / 45mm (60mm) / 75mm (90mm)
- Screw Hole Spacing: 150mm x 150mm
Bambu Lab ASA
Bambu ASA is a highly durable material that offers exceptional UV, weather, mechanical, and thermal resistance. Its unique combination of properties makes it an ideal material for printing outdoor models (plant signs, mailboxes, wind vanes, etc.) and structural parts that require long-term exposure to challenging outdoor conditions.
Product Features
- Extraordinary UV Resistance
- Exceptional Temperature Resistance
- High Impact Strength and Durability
- Outdoor Use for Long-Term Purpose
- Heat Resistance: 100°C
Print Specifications
- Material: UV Stable Acrylonitrile Styrene Acrylate
- Colour: White
- Profile: 0.16mm Balanced Quality
- Top Shell Layers: 6
- Infill Density: 15%
- Print Duration: 7h43m (30mm) / 14h23m (60mm) / 21h1m (90mm)
- Filament: 137.10g (30mm) / 250.41g (60mm) / 363.38g (90mm)
