LUNOS e²60 Decentralised ERV Systems

Decentralised Energy Recovery Ventilation

"About 40% of new buildings and existing buildings are estimated to suffer from condensation. Condensation would not occur if humid, moist air could be removed and replaced by drier air. This can be achieved, usually very simply, by better ventilation of the home." - Housing ACT

LUNOS decentralised energy recovery ventilation (ERV) systems provide fresh, clean air to your building, without losing valuable heat (or coolth). Decentralised systems do not require ducting, and are therefore typically much easier to install. This makes them perfect for retro-fittings, or buildings that simply do not have space to install a centralised ducting system.

For a new build, or an existing home with ample access to a roof or floor cavity, centralised systems may be more suitable.

e² Series

The e²60 from the e² series is one of the smallest decentralised fans with heat recovery in domestic ventilation.

Features and Benefits

• RETROFIT READY
  With no complicated ducting runs required, the decentralised systems are quick and easy to install.

• COMPACT DESIGN
  Decentralised systems are the perfect solution if your building design does not allow space for a large centralised unit.

• QUIET OPERATION
  Smaller and lower power fans make less noise than larger and more powerful centralised systems.
• EFFICIENCY
  The ductless system leads to an inherently lower pressure drop, which requires smaller fans, and generally results in a more efficient system.

• VERSATILITY
  The units can be installed in areas where ducting may not be able to travel.
• REDUNDANCY
  Because the units are independent, in the unlikely event that one unit fails, the other units in the team will have you covered.
• VARIABLE AND CONTROLLABLE AIR FLOW RATE
  Air flow of up to 60m3/hr.
• LOW ENERGY CONSUMPTION
  Between 0.4W and 3.3W.
• QUIET OPERATION
  Sound absorbing chamber reduces noise to a virtually inaudible 18dBA at normal speed (67dBA at max speed).
• 3 YEAR WARRANTY
  Provides peace of mind.

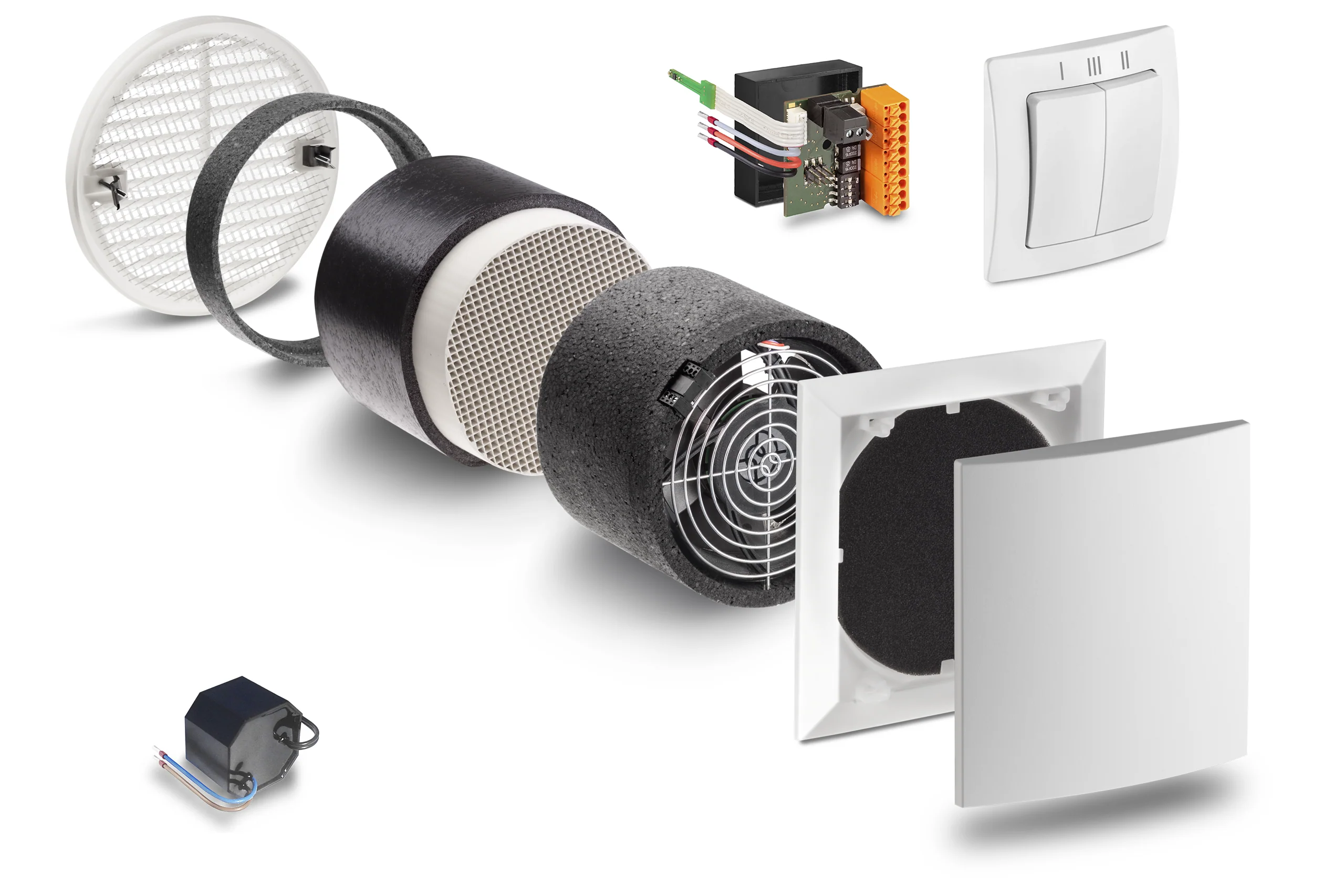

Mono Included Items

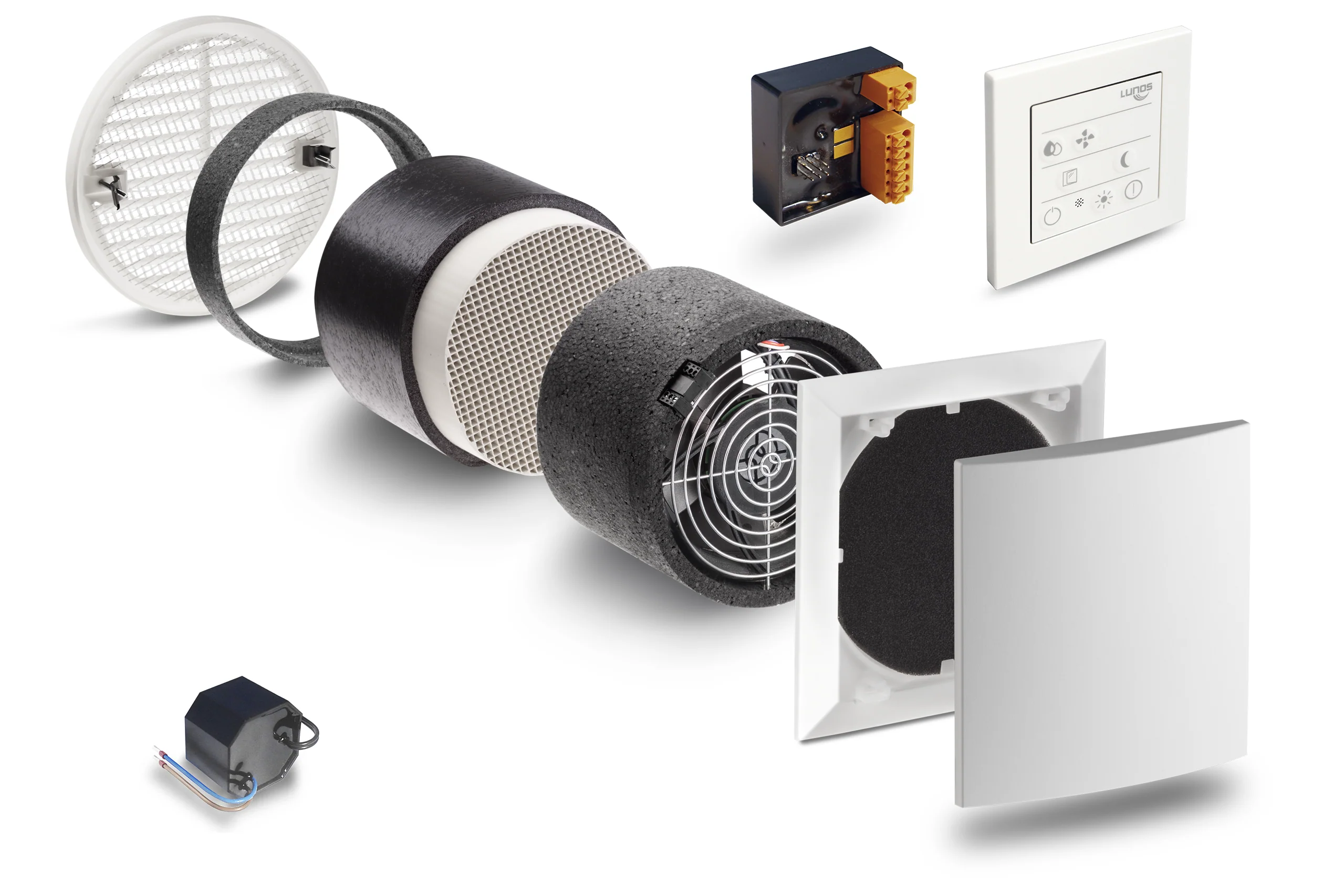

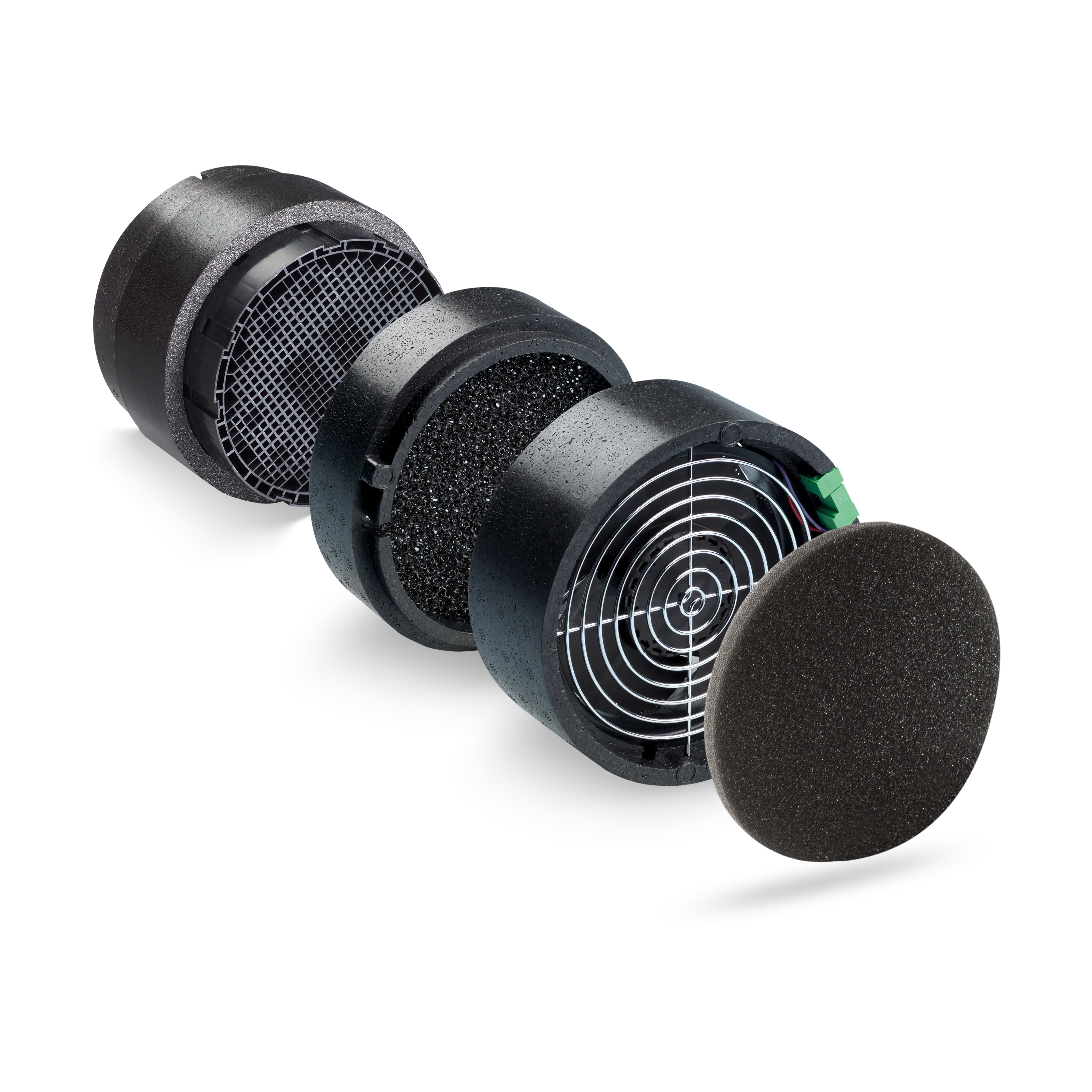

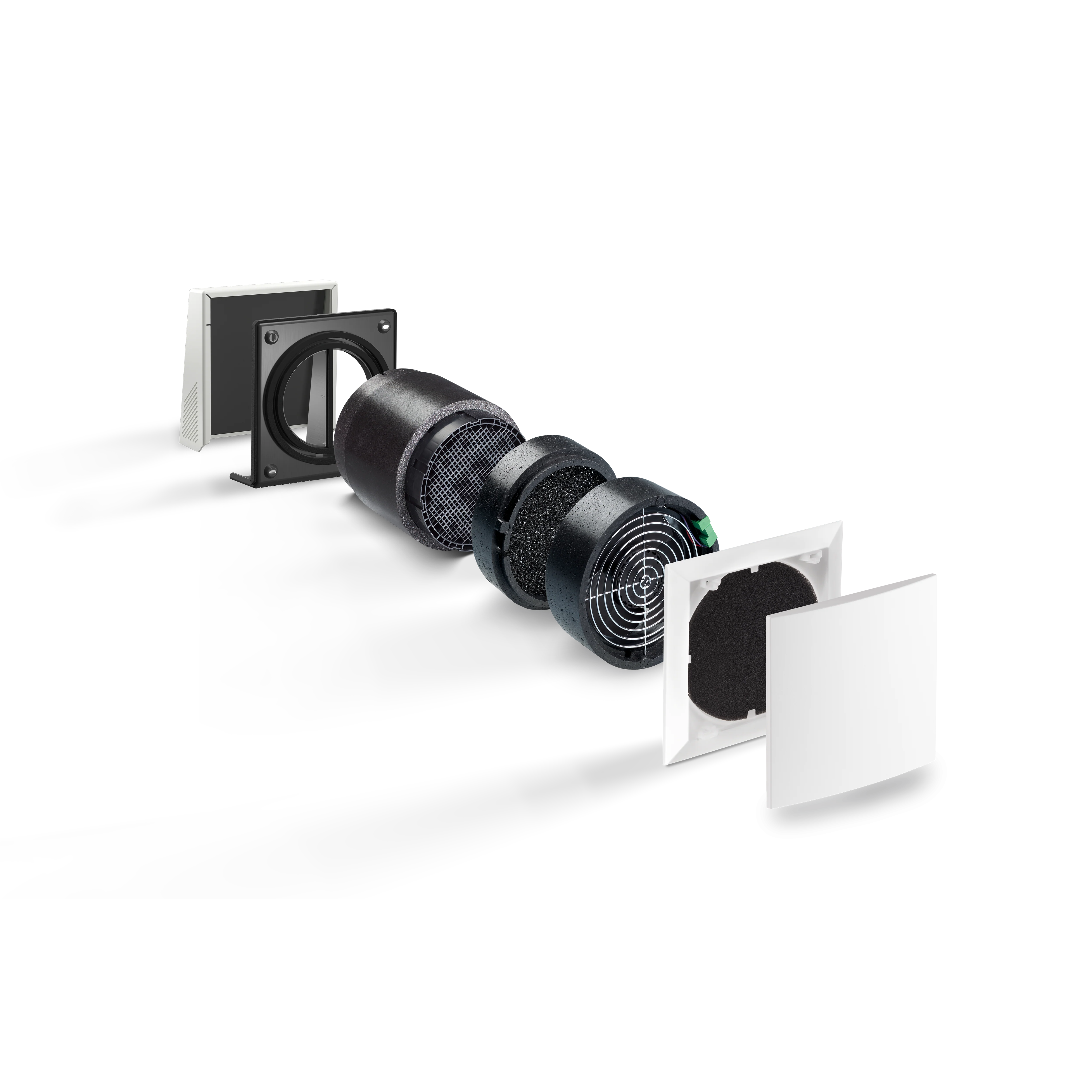

• 1 x LUNOS e²60 Fan Ceramic Heat Recovery Ventilation Unit.

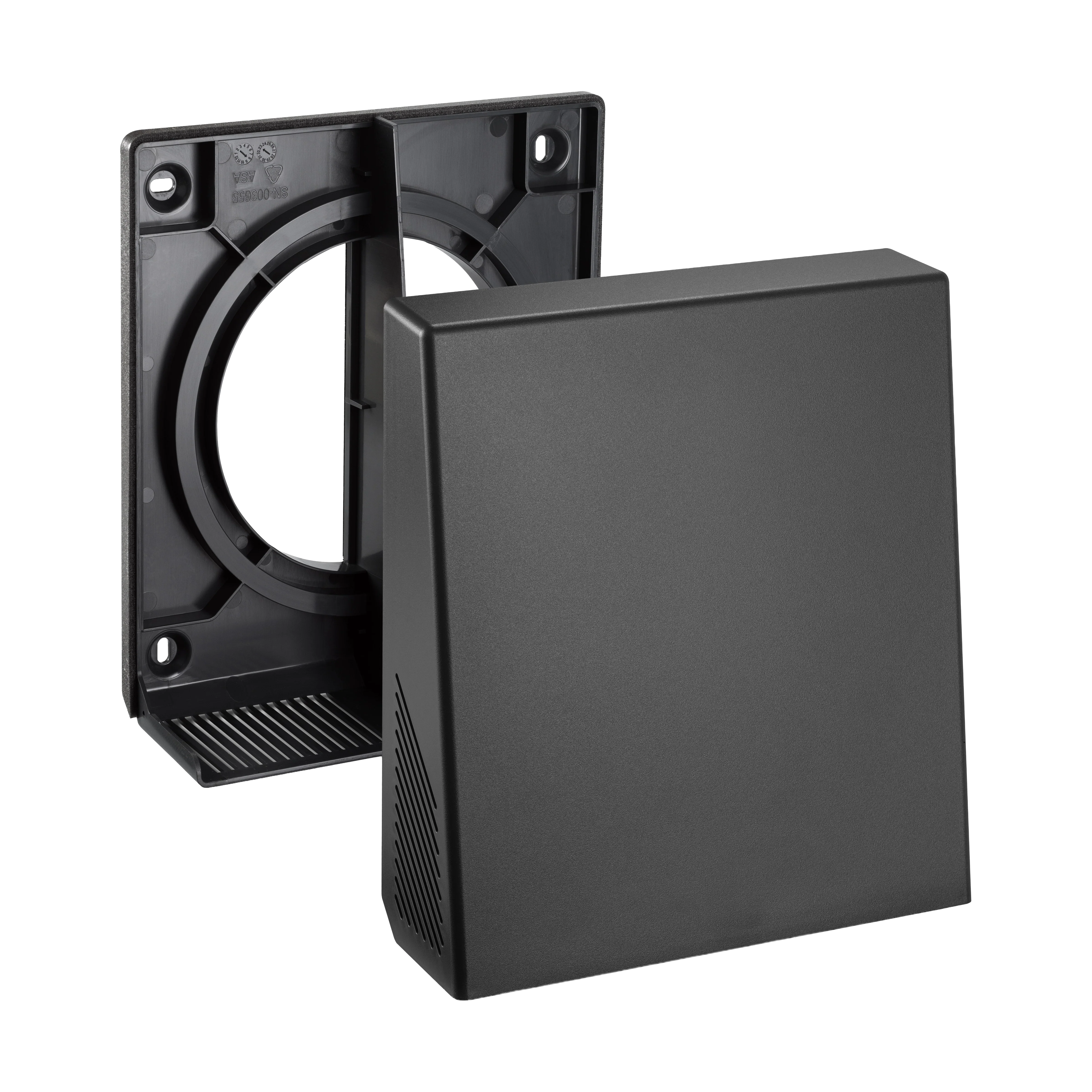

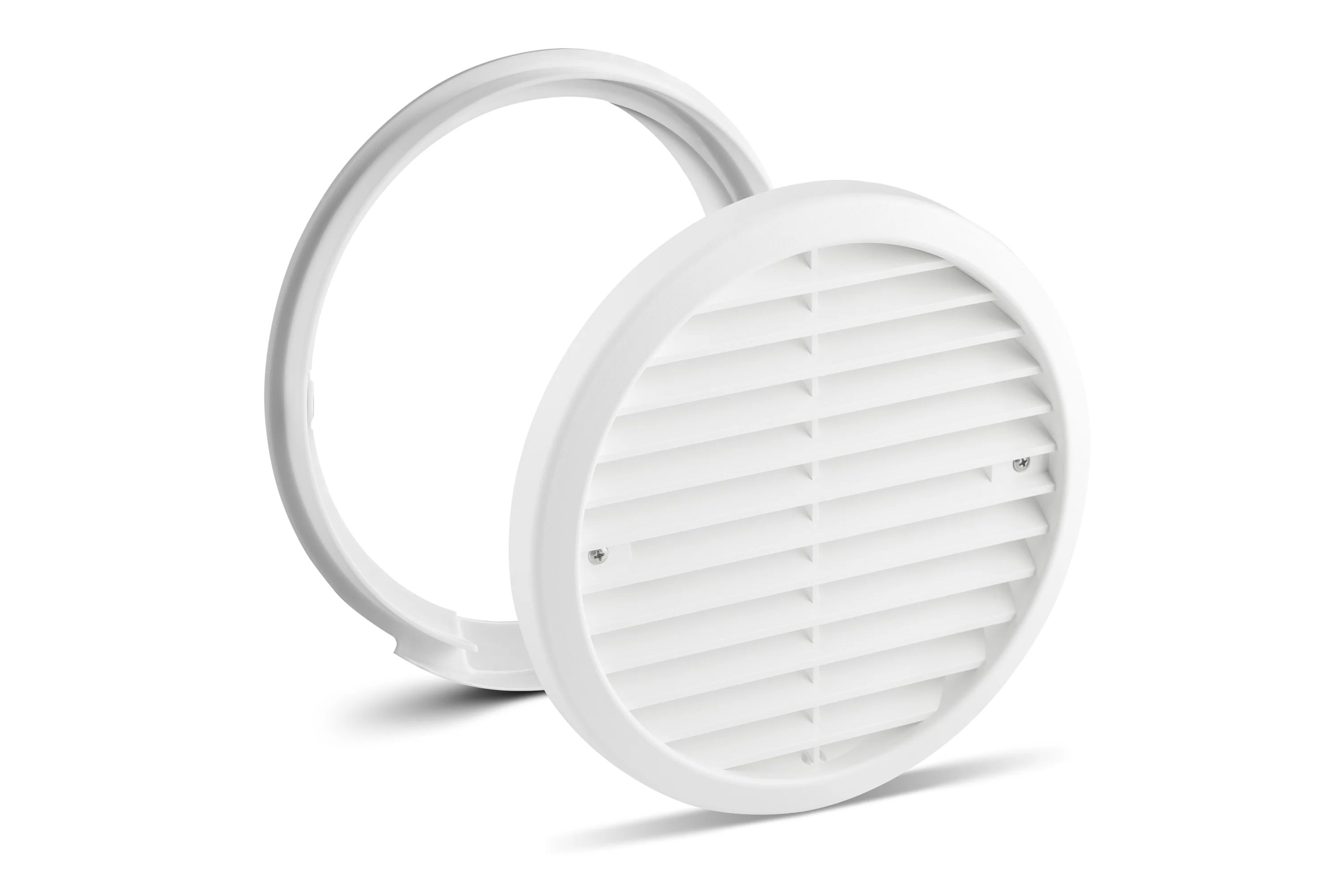

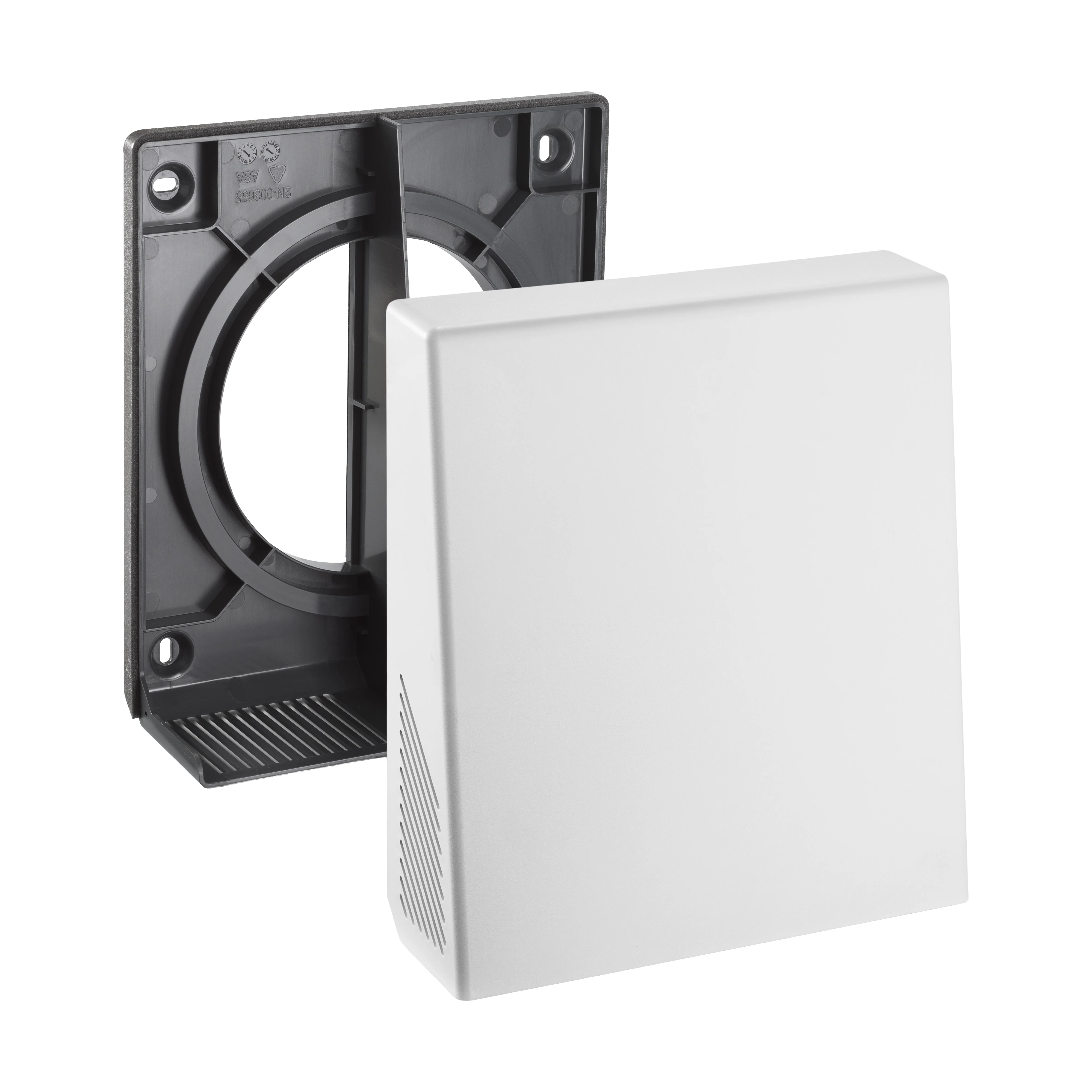

• 1 x External White Plastic Grille.

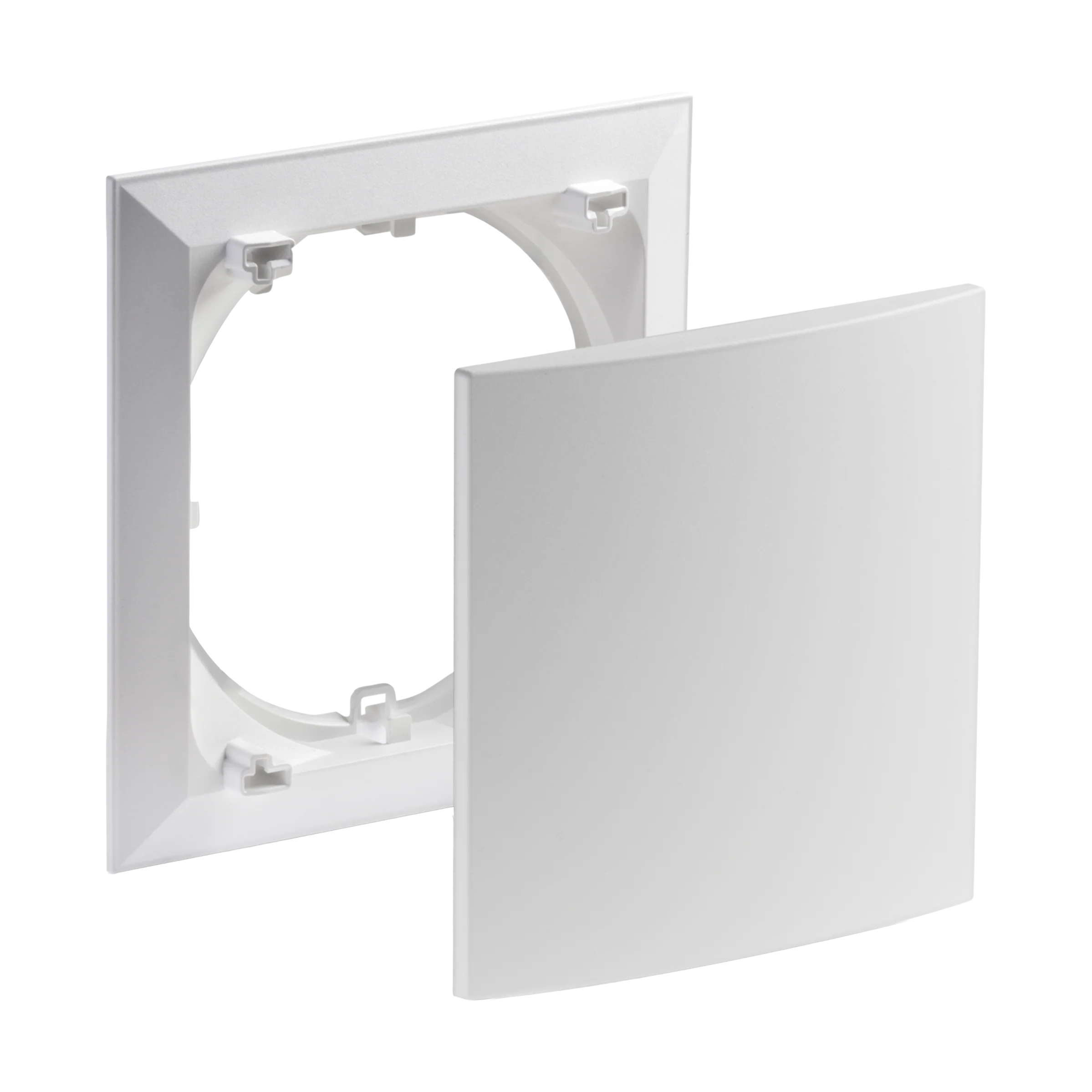

• 1 x Internal White Plastic Grille.
• 1 x G3 Long Term Filter Set.

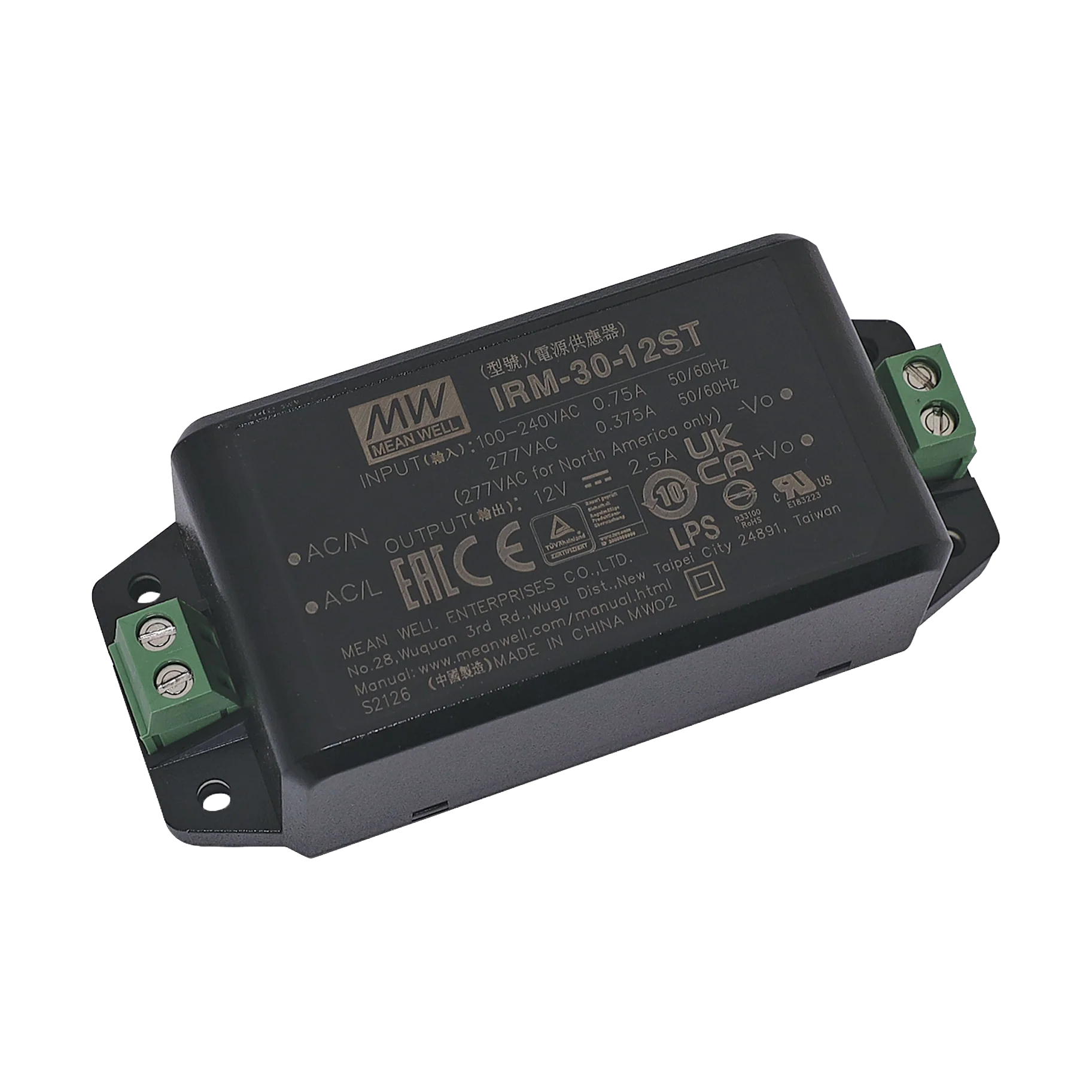

• 1 x 30W Power Supply for Controller and Unit.
• 1 x Controller (Universal Rocker Switch OR Smart Comfort Control).

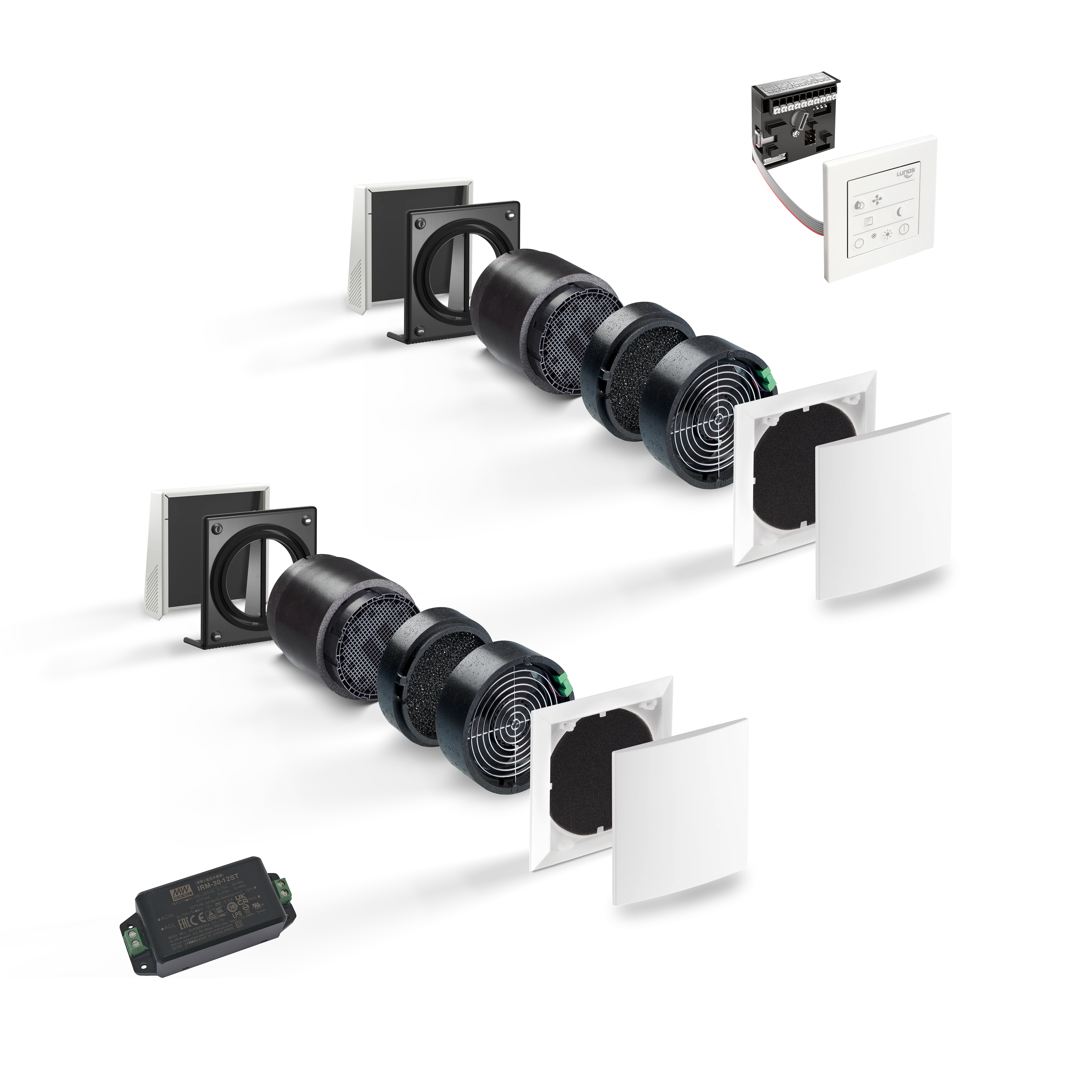

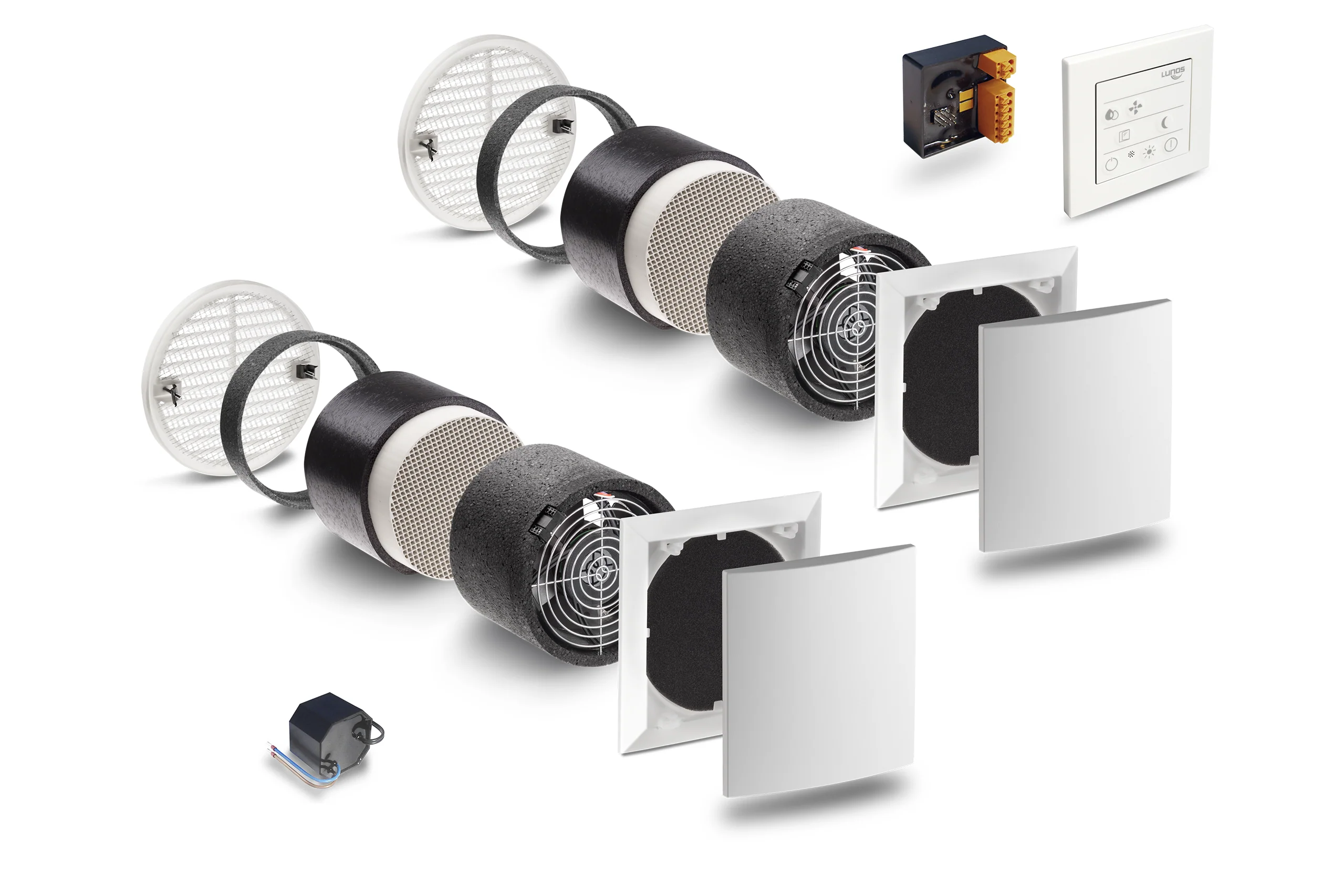

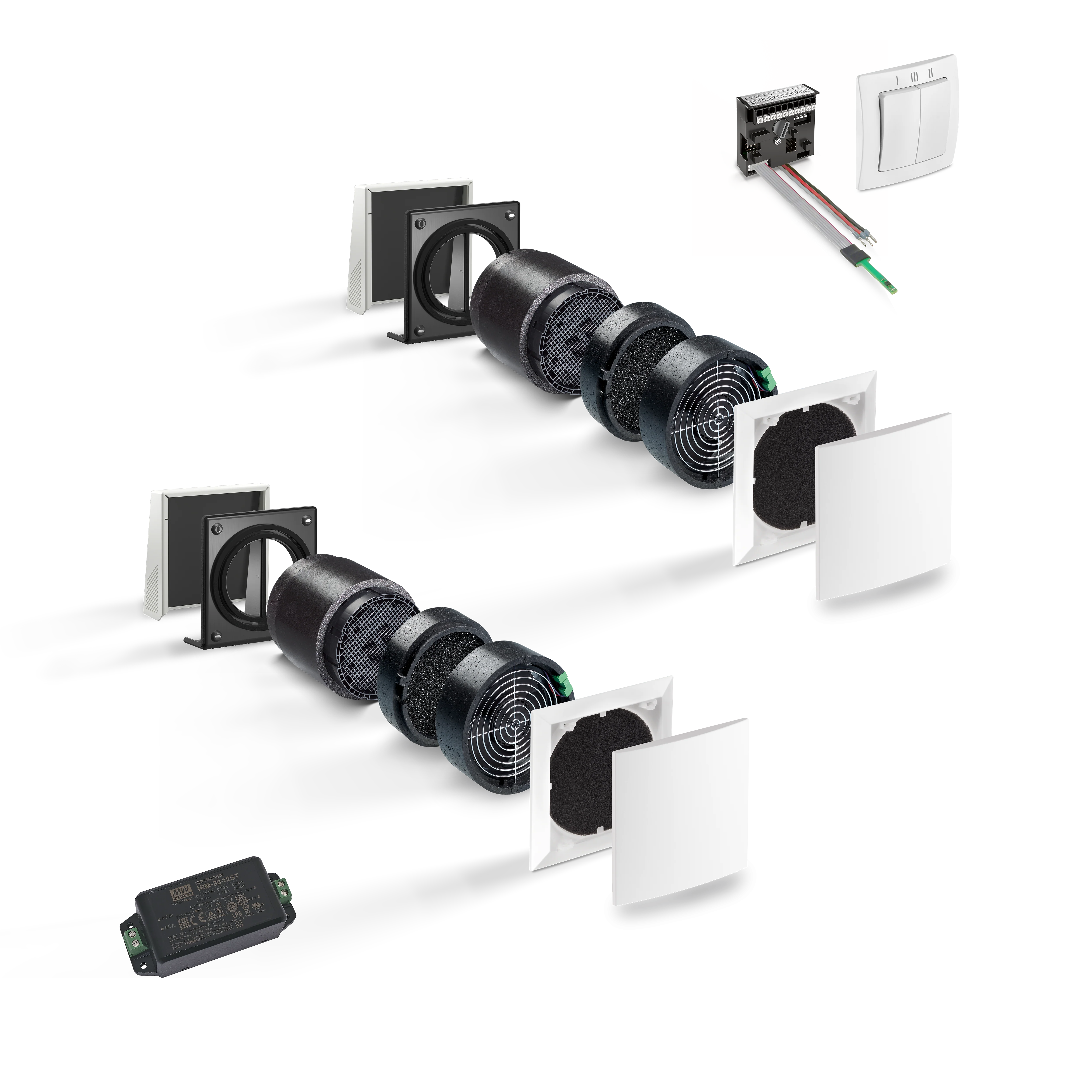

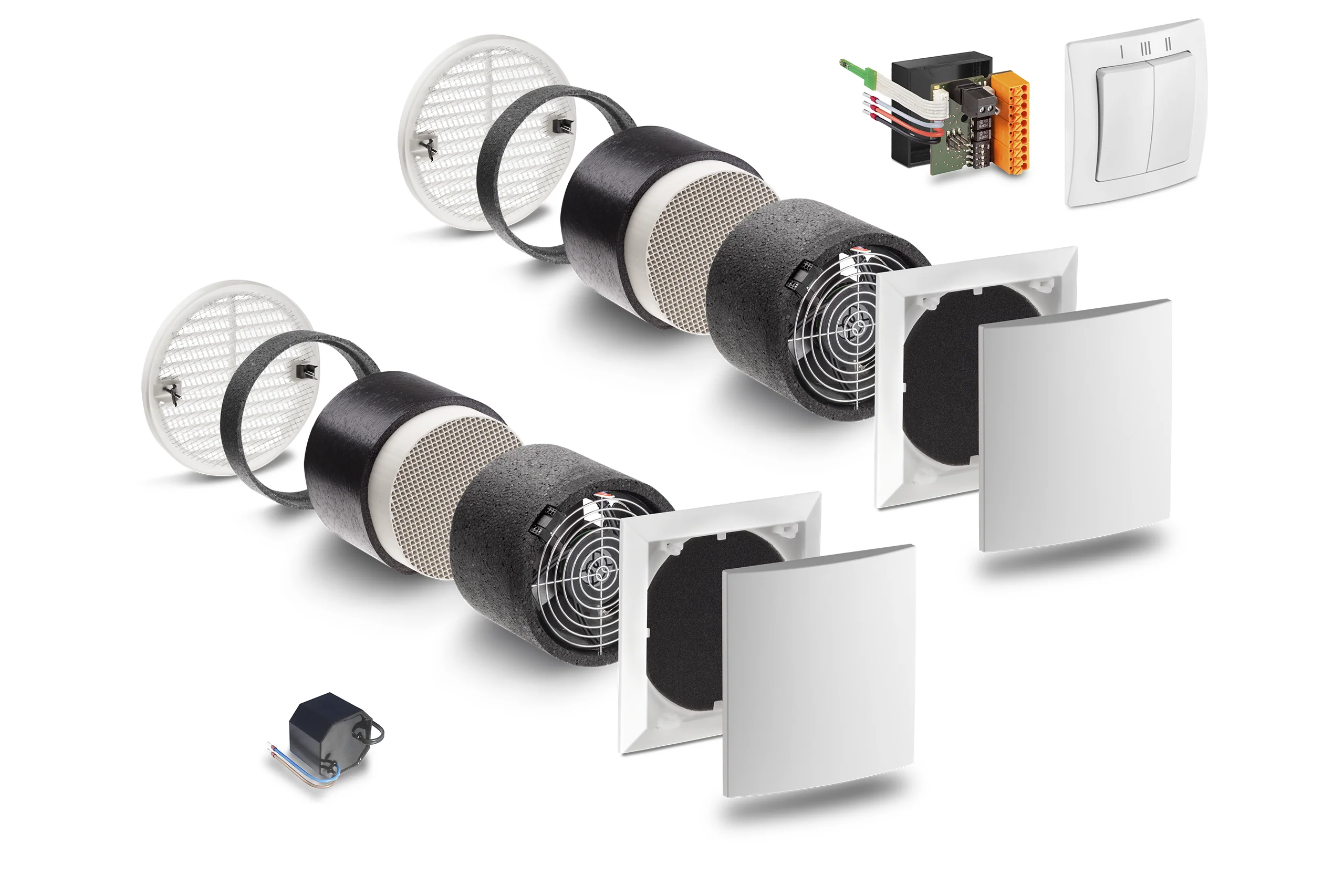

Duo Included Items

• 2 x LUNOS e²60 Fan Ceramic Heat Recovery Ventilation Units.

• 2 x External White Plastic Grilles.

• 2 x Internal White Plastic Grilles.
• 2 x G3 Long Term Filter Sets.
• 1 x 30W Power Supply for Controller and Unit.
• 1 x Controller (Universal Rocker Switch OR Smart Comfort Control).

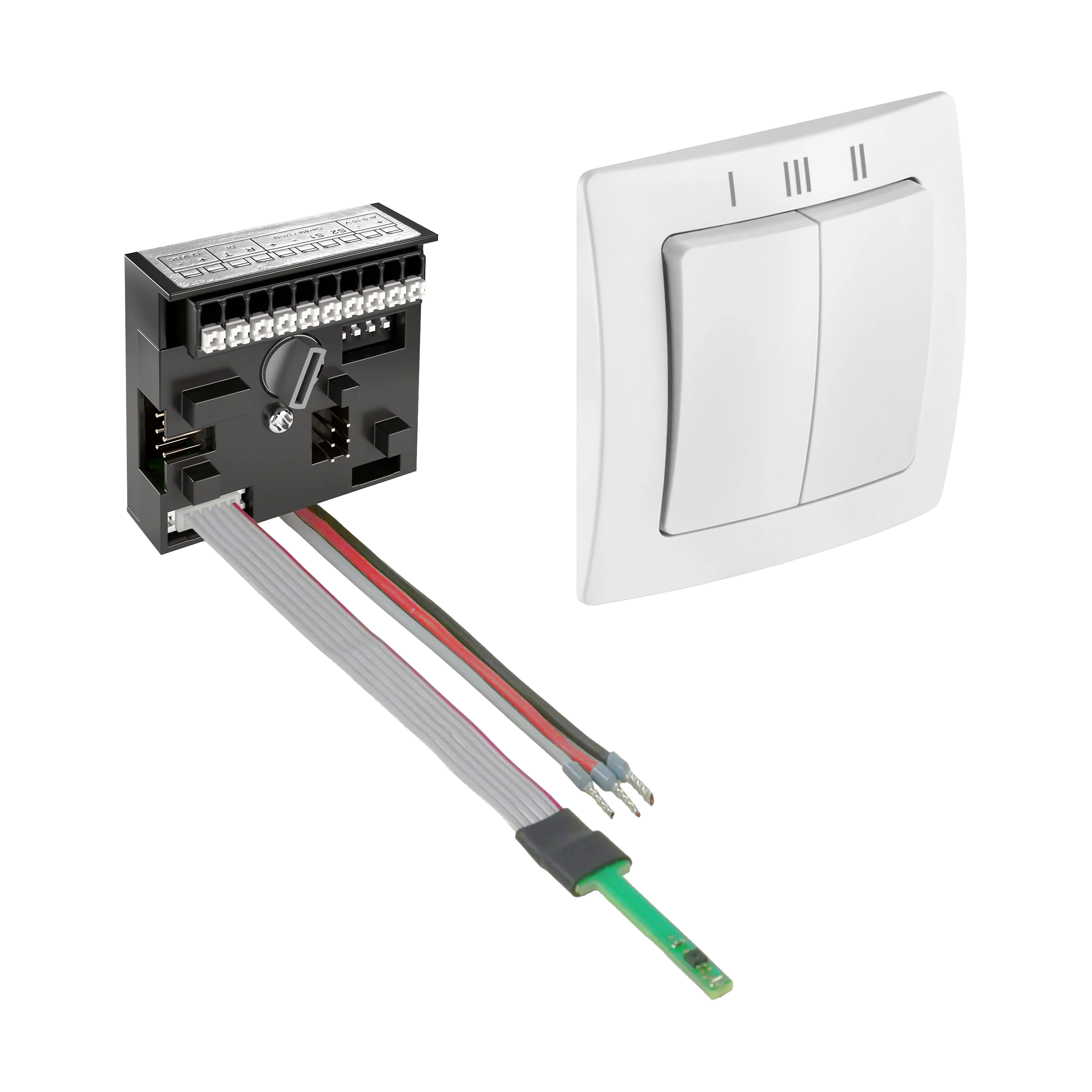

Universal Rocker Switch

A basic rocker switch for manual operation, summer bypass and optional humidity sensing.

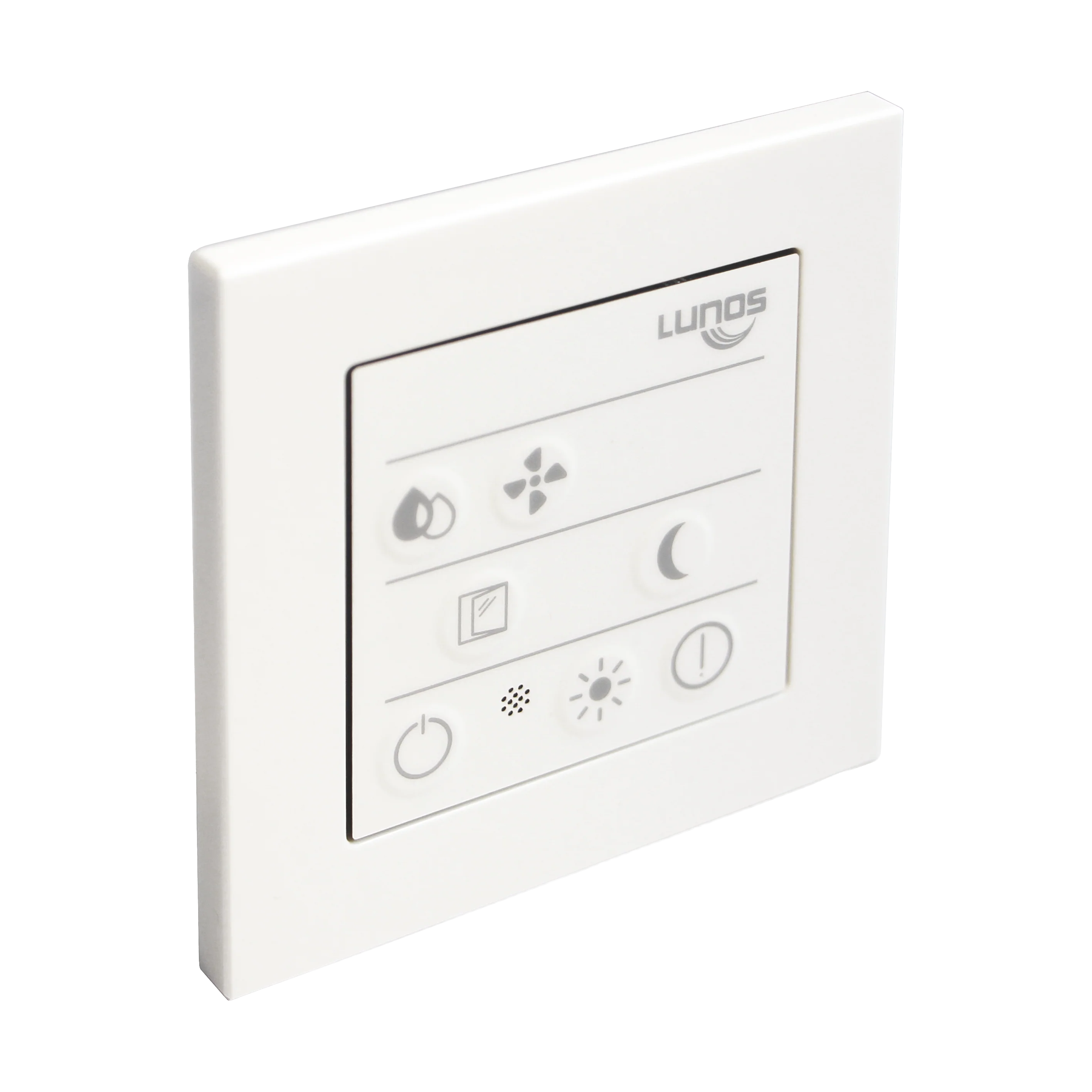

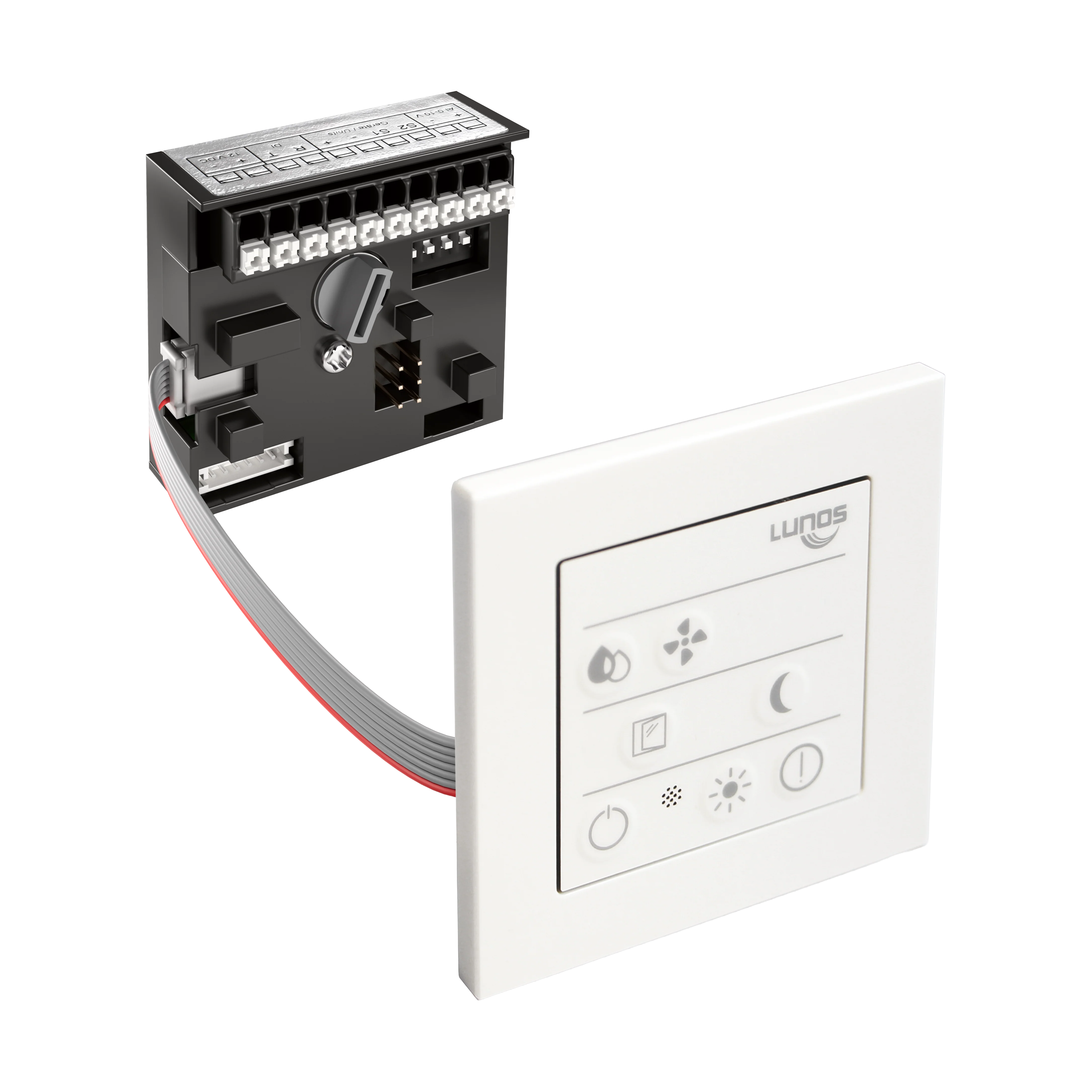

Smart Comfort Control

In addition to manual operation with four ventilation stages, the integrated humidity and temperature sensors also make it possible to activate a humidity-sensitive automatic mode, with eight stages of control.

As a special feature, the Smart Comfort Control can also be used to set day and season dependent modes such as night-time reduction, summer mode or intensive ventilation. Fresh air and a healthy indoor environment as well as energy-saving ventilation is assured. The smart controller can also be used to operate up to 12 fan units from one central controller.

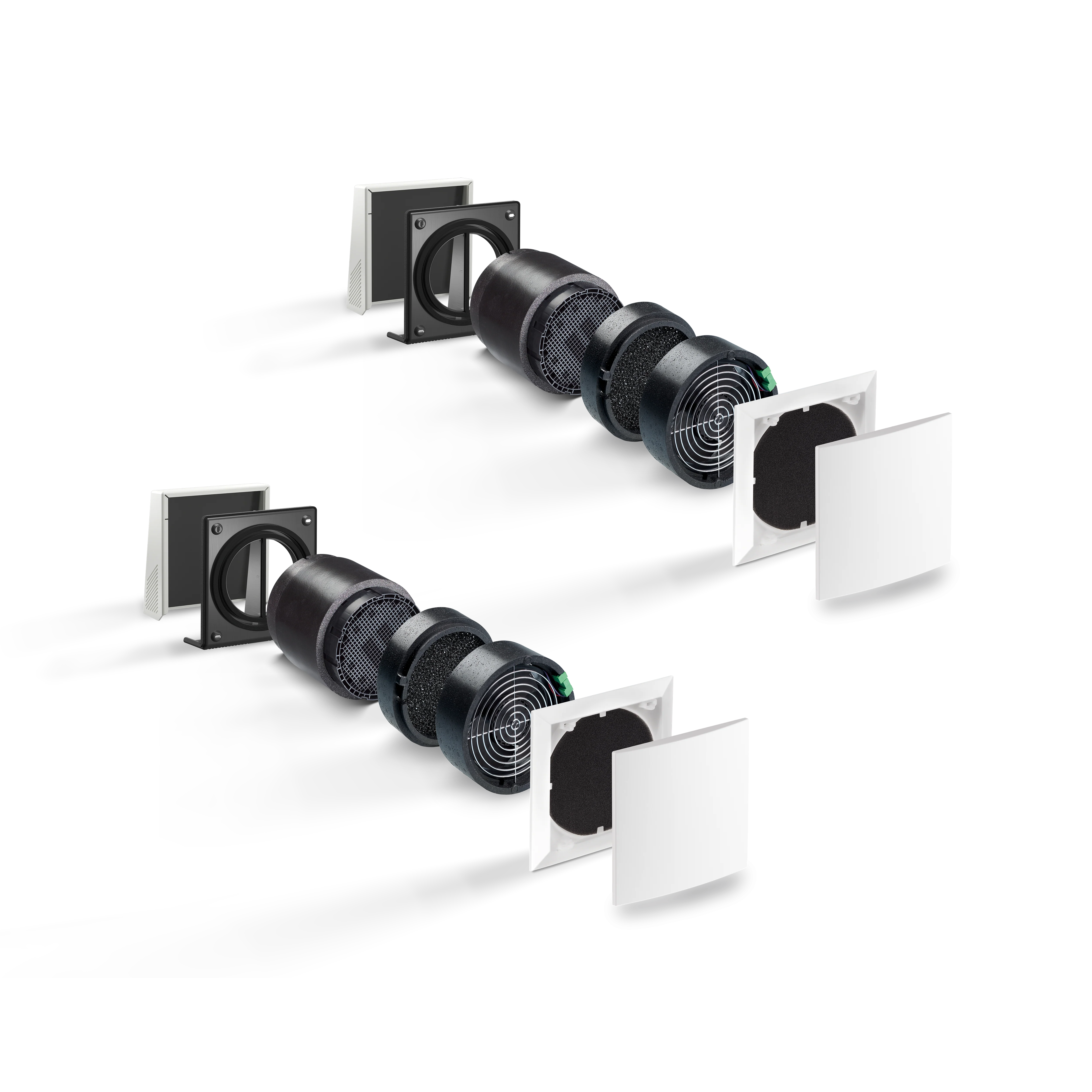

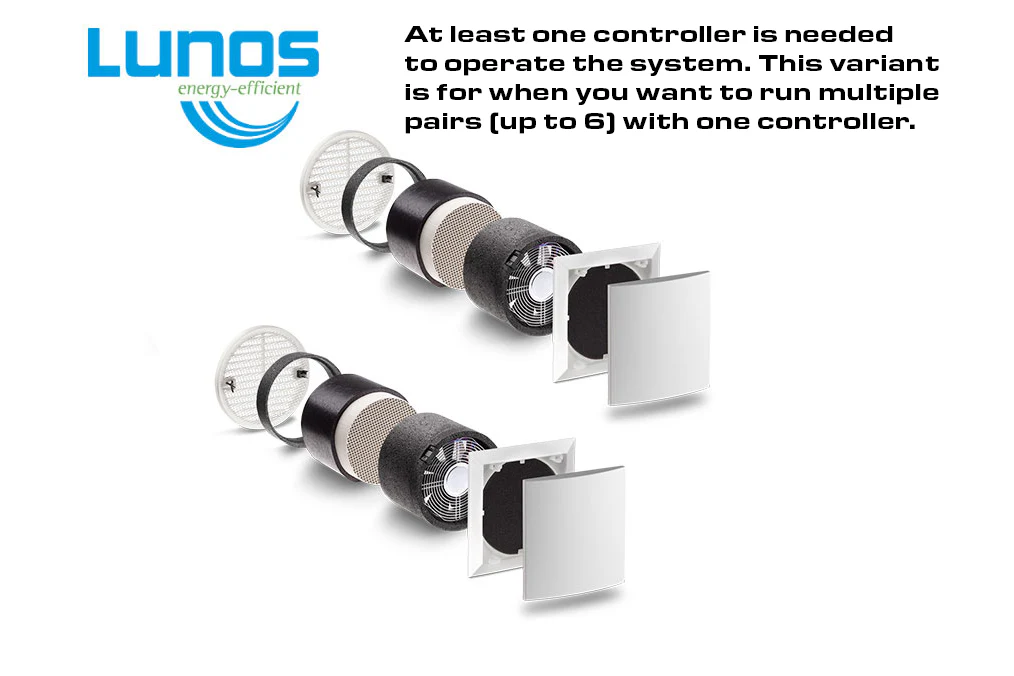

No Control

The Smart Comfort Control is capable of running up to six pairs (12 units). The Duo variant with no controller is for when you want to add pairs to an existing controller.

More Information

• LUNOS e²60 Technical Data Sheet.

• LUNOS e²60 Installation Guide.
• Universal Rocker Switch Installation Guide.
• Smart Comfort Control Installation Guide.
