150mm Mixed Flow Extractor Fan: Vortice Lineo ES (EC Motor)

Vortice Lineo Mixed Flow Extractor Fans

• Enclosures made of fire resistant plastic resin, E2 class, according with ISO EN 11925-2: 2010, in areas close to motor and electrical components.
• Nominal diameter 150mm.

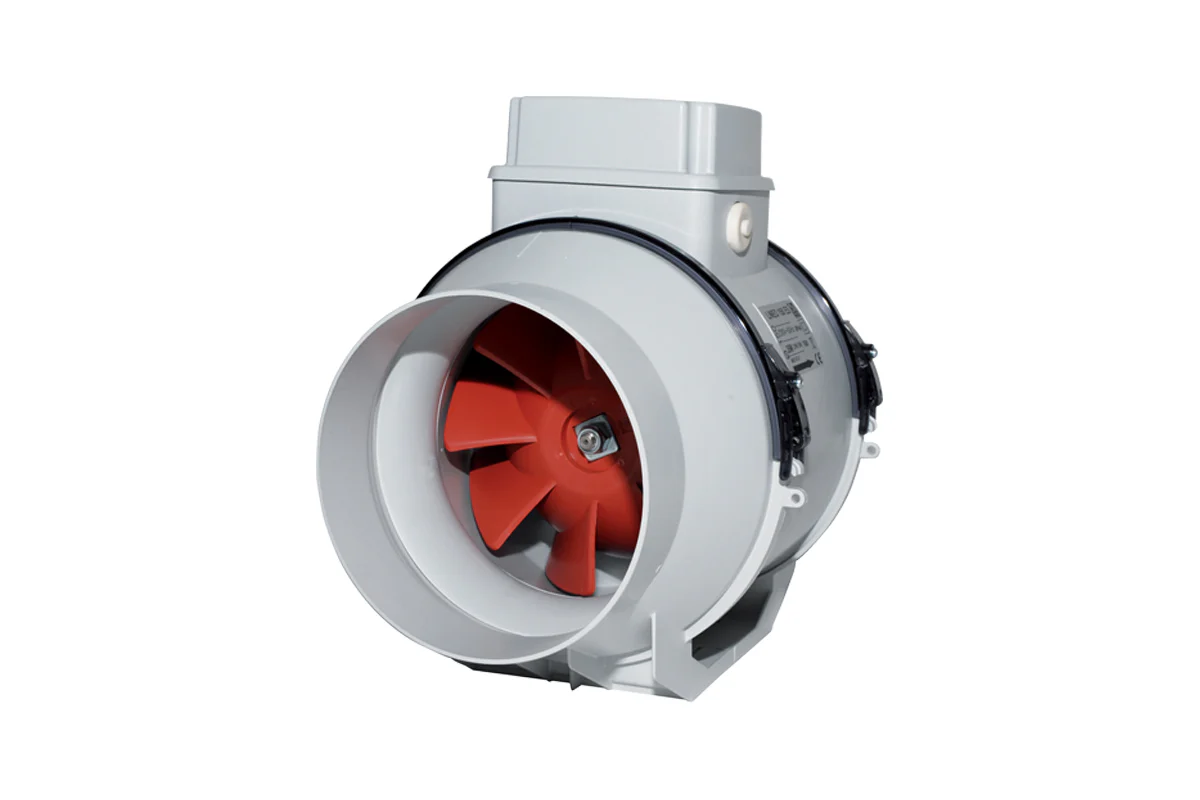

• EC (brushless) motor, thermally protected, with shaft mounted on ball bearing supports, coupled with a centrifugal impeller.
• High water resistance: IPX5 (if installed in a duct).
• Equipped with a thermal fuse overheating safety device.
• Speed adjustable through optional potentiometer (0-10V signal).
• Long life 30,000 hour motor.
• Double insulated housing (does not require an earth).
• Made in Italy.
• 2 Year Warranty.


Versions

Hard Wired

• Requires an electrician for hard wire installation.
• A switch can be installed for 2 speed operation (requires an electrician).

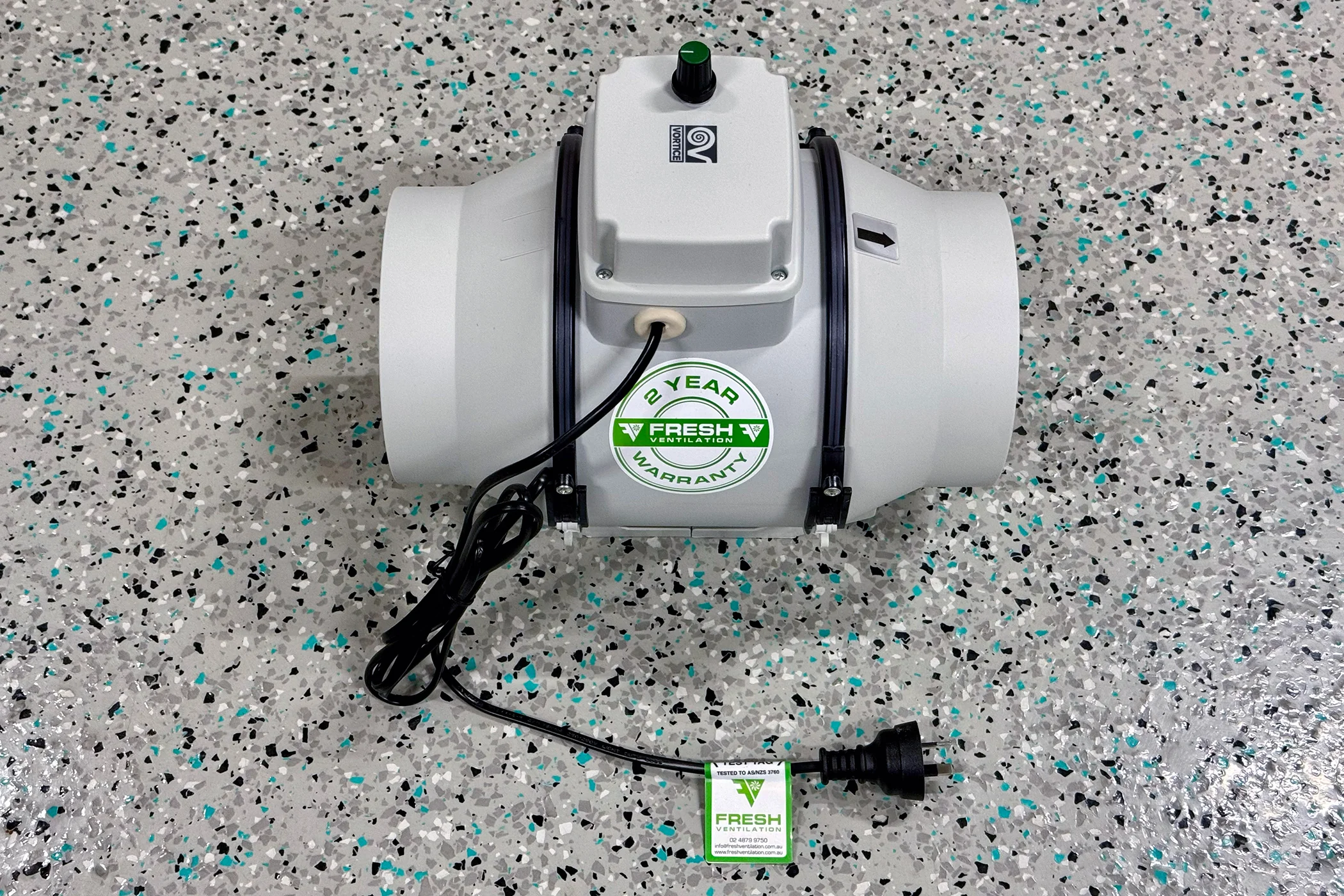

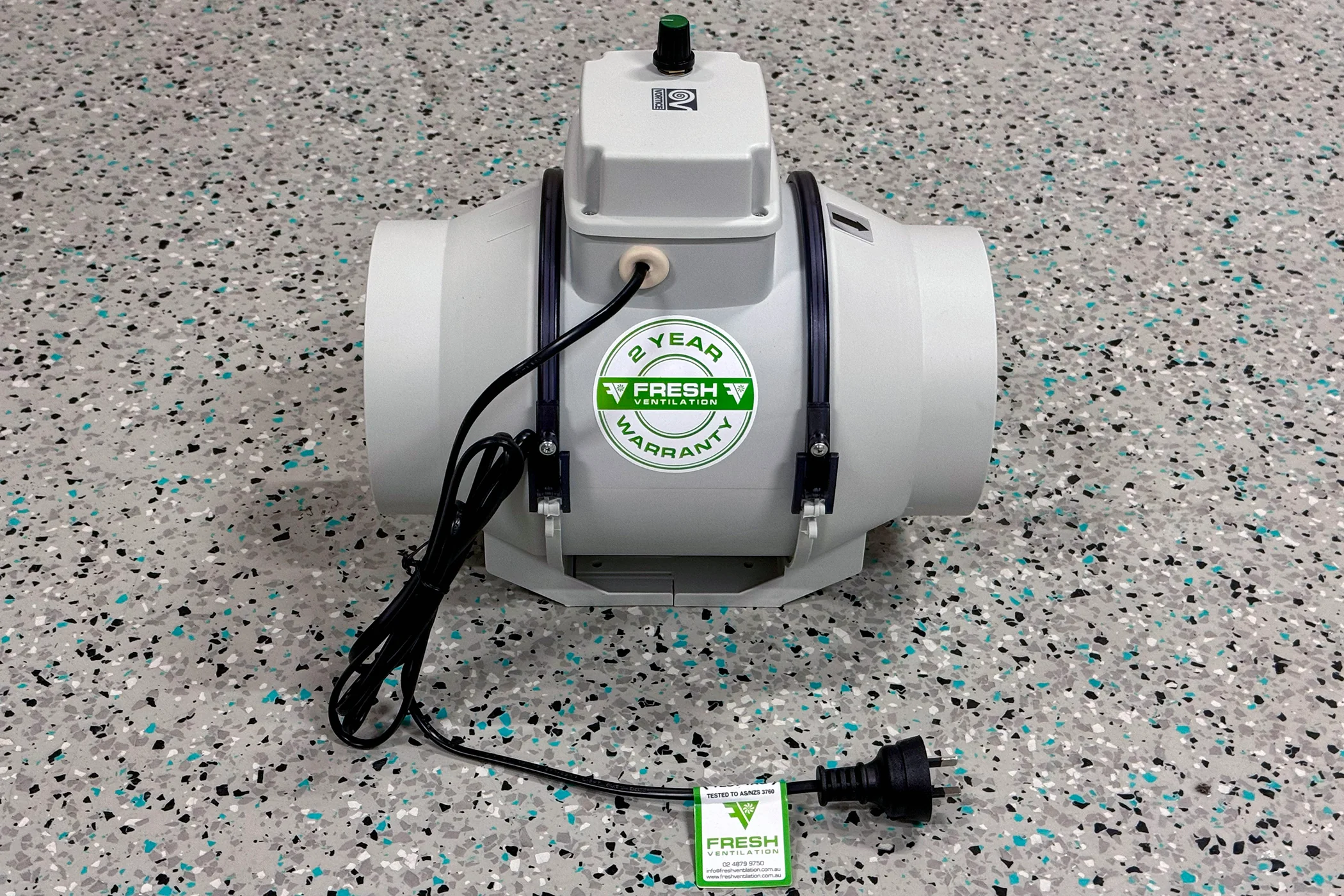

2 Pin Plug and Lead (Optional)

• Plug and play operation in a standard power point or socket outlet.

0-10V Variable Speed Controller (Optional)

• Includes a 0-10V potentiometer for infinitely variable speed control.
• 0-10V potentiometer can be removed from the fan and extended for remote installation elsewhere.

150mm Specifications

100% Speed (10V)

• Maximum absorbed power: 55 W.
• Maximum delivery: 590  m³/h.
• Pressure max: 433.5 Pa.
• RPM: 2,480.
• Sound pressure Lp 3m breakout: 41.9 dB(A).

80% Speed (8V)

• Maximum absorbed power: 34 W.
• Maximum delivery: 500 m³/h.
• Pressure max: 222.6 Pa.
• RPM: 2,125.
• Sound pressure Lp 3m breakout: 35.5 dB(A).

60% Speed (6V)

• Maximum absorbed power: 17 W.
• Maximum delivery: 370 m³/h.
• Pressure max: 135.3 Pa.
• RPM: 1,595.
• Sound pressure Lp 3m breakout: 27.2 dB(A).

40% Speed (4V)

• Maximum absorbed power: 11 W.
• Maximum delivery: 290 m³/h.
• Pressure max: 83.4 Pa.
• RPM: 1,260.
• Sound pressure Lp 3m breakout: 21 dB(A).

Dimensions

• 214.5mm width (A).
• 265mm height (B).
• 294mm length (C).
• 146mm duct attachment flange diameter (D).
• 2.6kg weight.

Model

• Vortice Lineo 150 ES.
